RK628H AI Processor Chip Video Bridging Chip With HDMI Transmission​

Product Description Of RK628H

RK628H is a highly integrated video bridging chip supporting HDMI/parallel RGB/BT.1120 as inputs, with dual MIPI/dual LVDS/parallel RGB/BT.1120 outputs and an integrated scaler.

Specification Of RK628H

Input Interfaces:
- HDMI Input Compliant with HDMI 1.4/HDMI 2.0, Supports HDCP 1.4, Maximum resolution 4K@60fps
- RGB/BT1120 Input, Maximum resolution 1080p@60fps
Output Interfaces
- Dual LVDS Output, Maximum resolution 1080p@60fps
- Dual MIPI DSI Output, Maximum resolution 2560x1600@60fps
- Dual MIPI CSI Output, Maximum resolution 3840x2160@60fps
- HDMI 1.4 Output, Maximum resolution 1080p@60fps
- RGB/BT1120 Output, Maximum resolution 1080p@60fps
Interfaces
- I2C, GPIO
- 8-channel I2S Audio Interface

Features Of RK628H

HDMI2.0 Iuput
RGB/BT1120 Input
Dual LVDS Output
Dual MIPI DSI Output
Dual MIPI CSI Output
HDMI1.4 Output
Max Input and Output Resolution 4k@60fps
Digital Audio Interface

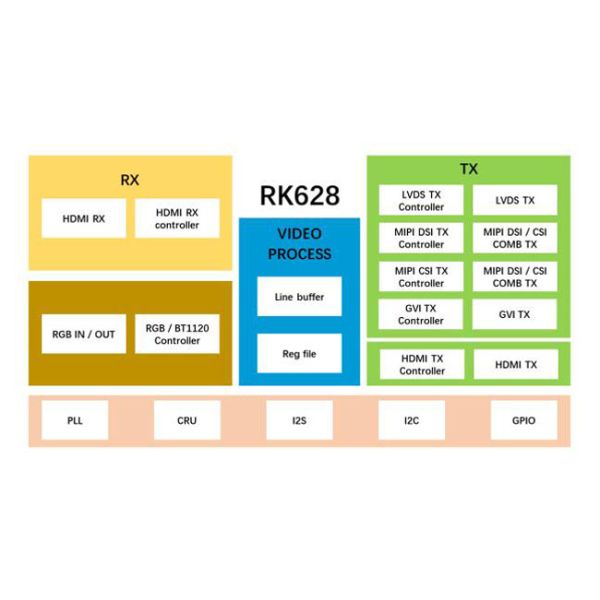

Block Diagram Of RK628H
