RK2116G AI Processor Chip High Performance Dual-Core HiFi4 DSP Processor QFP128L

Product Description Of RK2116G

RK2116G is a high-performance dual-core HiFi4 DSP intelligent voice processor, specifically designed for smart voice interaction, audio input/output processing, and other digital multimedia applications.
RK2116G processor integrates an N320 RISC-V core processor capable of running operating systems, UI rendering, and application protocol stacks. With 768KB of system memory and support for in-chip execute (XIP) flash interfaces, the RK2116G offers flexible adaptation to diverse application development requirements.
RK2116G integrates a comprehensive array of peripheral interfaces, including VOP display output, SAI audio bus, PDM microphone input, SPDIF digital audio, USB 2.0 OTG, RMII Ethernet, CAN bus, and CEC consumer electronics control. This not only accommodates diverse application development requirements but also significantly reduces hardware development complexity and cost.

Specification Of RK2116G

CPU: RISC-V, up to 300MHz
Memory Interface: 16MB PSRAM (RK2116G)
DSP: 2xHIFI4
Audio Interfaces & Processing: 8xSAI / 8xPDM / SPDIF RX / SPDIF TX
Peripheral Interfaces: USB 2.0 OTG / 2xSDIO / CAN 2.0B / 4xUART / 4xSPI / 7xI2C / 4xSARADC / 8xPWM / RMII
Package: QFP128L (14mm x 14mm)

Features Of RK2116G

N320 RISC-V processor
Support 16KB l-Cache and 16KB D-Cache
Support standard 2-wire cJTAG debug interface
Dual core HiFi4 DSP processor (DSP0,DSP1)
Internal SRAM
- 768KB System SRAM
- 16KB PMU SRAM
High-performance audio processor chip
Supports Dolby and DTS, capable of running third-party audio processing algorithms
High-performance dual-core DSP
8 SAI units, 51 dedicated audio I/O pins, flexible audio input/output configuration
Multi-channel hardware ASRC

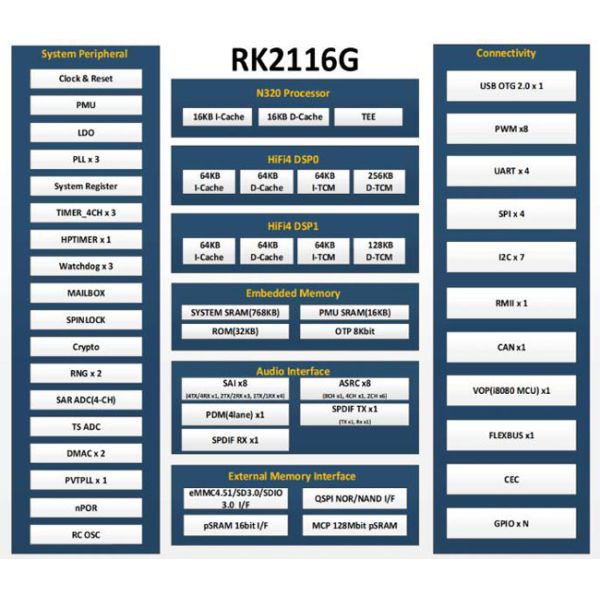

Functional Block Diagram Of RK2116G
