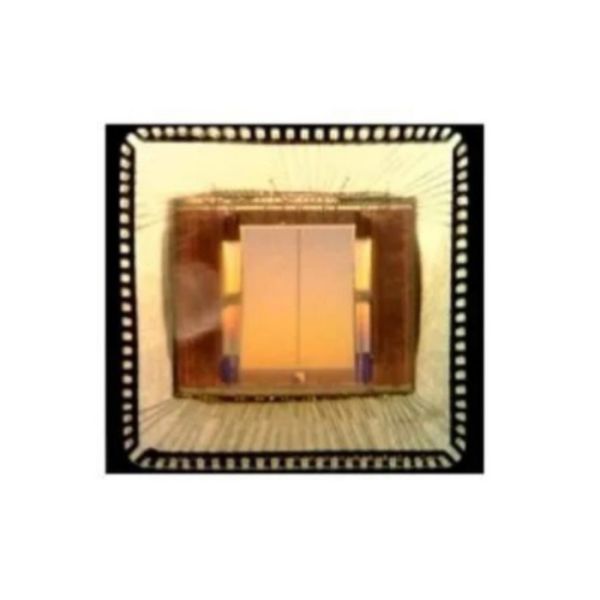

VI4310 Sensor IC Highly Integrated 3D Single Photon Image Sensor In CoB Package

Product Description Of VI4310
VI4310 is a single photon image sensor, which integrates a 19K pixel (160 rows x 120 columns) SPAD detector array and 3D imaging circuit. Based on the single photon detection and direct time-of-flight (dToF) technology designed by visionICs, VI4310 can directly output 3D point cloud data and depth map with centimeter accuracy, without the external ISP assistance. This SoC provides an efficient, low-cost solution for the solid-state LiDAR and 3D imaging.

Features Of VI4310
Imaging Array
160 × 120 pixels
Sensing Area: 3900 × 3000 µm²
Die Size: 6379 × 5260 µm²
Pixel Pitch: 21.4 µm (H) × 18.8 µm (V)
Frame Rate: 30 fps (Programmable)
Interface
Sensor Configuration: I²C, 200 kH
ToF Output: DVP, 75 MHz
Operating Temperature:-20 °C to 65 °C
Ranging Performance
Range: 15 m
Ranging Resolution: 0.75 cm
Ranging Accuracy: ± 1%
Power Supply:1.5V/3.3V/28.5V
Storage Temperature:-40 °C to 105 °C
Package:CoB

Applications Of VI4310
ADAS
Autonomous driving LiDAR
Real-time 3D mapping for robot vaccum cleaner
3D machine vision
Security
Gesture Control
AR/VR
UAV & AGV anti-collision
