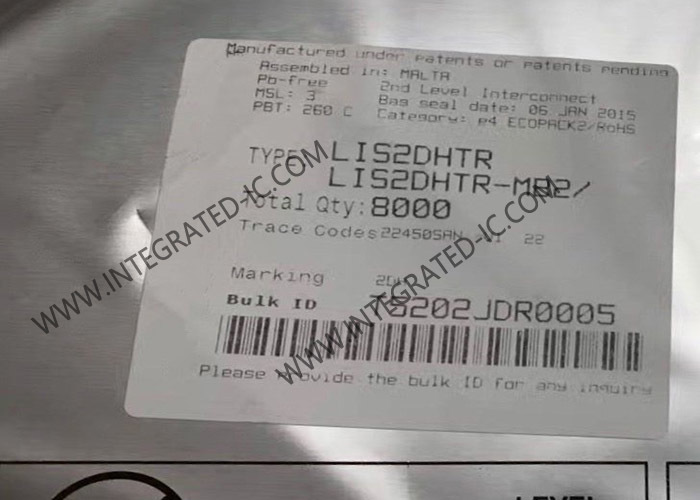

LIS2DHTR Three-Axis Accelerometer with Digital I2C/SPI Interface and ±2g/±4g/±8g/±16g Range
LIS2DHTR Three-Axis Accelerometer with Digital I2C/SPI Interface and ±2g/±4g/±8g/±16g Range
Specifications
Acceleration Range :
±2g, 4g, 8g, 16g
Place of Origin :
CN
Brand Name :
Original Factory
Certification :
Lead free / RoHS Compliant
Model Number :
LIS2DHTR
MOQ :
10
Price :
Contact for Sample
Packaging Details :
LGA-14
Delivery Time :
3-5 work days
Payment Terms :
TT
Supply Ability :
10000 Pieces per Day
Sensitivity (LSB/g) :
1000 (±2g) ~ 83 (±16g)
Output Type :
I2C, SPI
Voltage - Supply :
1.71V ~ 3.6V
Axis :
X, Y, Z
Bandwidth :
0.5Hz ~ 672Hz
Description
LIS2DHTR Sensor IC Three-Axis Linear Accelerometer

Digital I2C/SPI Serial Interface

Product Overview Of LIS2DH

LIS2DH MEMS Digital Output Motion Sensors are 3-axis MEMS digital output accelerometer sensors. These devices feature ultra-low-power consumption with embedded functionality and share the same pinout within the product family, utilizing digital I2C/SPI serial interface standard output.

The LIS2DH offers dynamically user-selectable full scales of ±2g/±4g/±8g/±16g. The device can be configured to generate interrupt signals based on movement detection including inertial wake-up/free-fall events as well as device position detection.

Technical Specifications Of LIS2DH
Parameter Value
Sensor Type 3-axis
Sensing Axis X, Y, Z
Acceleration 2 g, 4 g, 8 g, 16 g
Sensitivity 4 mg/digit, 8 mg/digit, 16 mg/digit, 48 mg/digit
Output Type Digital
Interface Type I2C, SPI
Resolution 12 bit
Supply Voltage - Max 3.6 V
Supply Voltage - Min 1.71 V
Operating Supply Current 2 uA
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
Key Features Of LIS2DH
  • Independent IOs supply (1.8V) and supply voltage compatible
  • ±2g/±4g/±8g/±16g dynamically selectable fullscale
  • I2C/SPI digital output interface
  • 2 independent programmable interrupt generators for free-fall and motion detection
  • 6D/4D orientation detection
  • Freefall detection
  • Motion detection
  • "Sleep to wake" and "return to sleep" functions
  • Embedded temperature sensor
  • Embedded FIFO
  • LGA-12 leads, sharing the same pinout
  • ECOPACK® RoHS and "Green" compliant
Applications Of LIS2DH
  • Motion activated functions
  • Smart power management
  • Display orientation
  • Shake control
  • Pedometers
  • Gaming and virtual reality input devices
  • Impact recognition and logging
