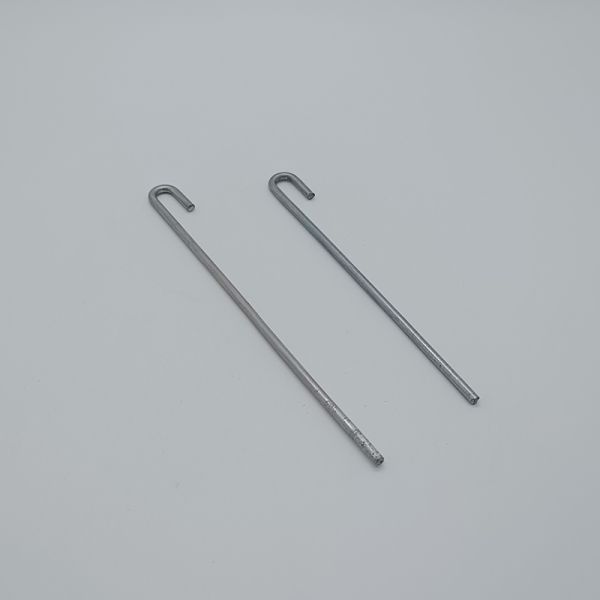

Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers
Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers
Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers
Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers
Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers
Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers
Specifications
Certification :
ISO9001
Place of Origin :
Hebei, China
Payment Terms :
T/T, D/A, D/P, L/C, Western Union
Delivery Time :
15-3 work days
Packaging Details :
Cartons+plastic Bags+pallet
Type :
J hook
Material :
Aluminium
Finish :
Polished
Shank type :
Smooth, Spiral
Usage :
Fixed solar panel
Application :
High temperature insulation material
Feature :
Durable
Name :
Solar Fixed Insulation Nail
MOQ :
5000pcs
Supply Ability :
5 million sets
Price :
$0.098-0.35/piece
Description

J Hook Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers for Roof Mounting Essential Solar Mounting System

Product Description

Solar Panel Clips and Mesh Kit Installation Guide

  • Place provided Solar Panel Bird Control Fastener J Hook clips with every 30-40cm along the underneath of the solar panel frame and pull tight.
  • Roll out the solar panel wire mesh and cut into manageable 2 meter lengths for easier handling. Position the wire mesh in place, making sure the fastening rod points upwards so it keeps a downward pressure on the wire mesh to create a firm barrier to the roof. Allow the bottom to flare out and curve along the roof, this will ensure rodents and birds cannot access under the wire mesh.
  • Attach the fastening washer and push firmly to the end to tightly secure the mesh.
  • When joining the next section of wire mesh, overlay approximately 10cm and join the 2 pieces with cable ties to create a complete barrier.
  • For outer corners; cut upwards from the bottom until the bend point.
  • For inner corners: cut the wire mesh upwards from the bottom until the bend point, secure any overlay sections together using cable ties.

Product Features

  • An innovative system designed specifically to keep birds out from under solar arrays protecting the roof, wiring and equipment from damage.
  • Solar clips are recommended every 450mm (18 inches) 2 clips on short edge 3 clips on long edge.
  • Solar clips bind the mesh to the panels without drilling holes or damaging the system
  • A new product that is fast easy & highly effective, making solar panel bird exclusion straight forward
  • This non-penetrating system is fast and easy to install and can be removed for service.
  • A typical solar panel is approximately 1.6m tall and 1m wide, on a typical panel one should use 3 clips on each long edge and 2 clips on each short edge.

technical Parameters

Common specifications Length: 120MM
Diameter: 10GA , 14GA

Material

 J-Hook Aluminum ,Stainless steel
Washer Stainless steel
surface treatment Cleaning (Aluminum), Passivation ( Stainless steel ), Black coating (washer)
production workmanship Automated production
supply capability 10000Pcs/hour
Application Solar panel mesh clips contain self locking washers and J-hooks
remark Technical parameters are available upon request

Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers

Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers

Aluminium J Hook For Solar Panel Mesh Bird Barrier Birdaway Deterrent Clips Washers

FAQ

Q1 : How can you control your quality?
A1 : For each production processing, We have complete QC system for the chemical
composition and Physical properties. After production, all the goods will be tested, and
the quality certificate will be shipped along with goods.

Q2: Are you a manufacture or trader?
A2: We are truly a manufacturer, we not only can provide the high quality products with the
best price, but also can offer the best pre-sale service and after-service.

Q3 : Do you provide free samples?
A3 : Of course, free samples are available.

Q4 : What is your lead time?
A4 : It usually needs about 15- 20 days after receiving the PO.

Q5 : Can we visit your company?
A5 : Yes, for sure, you are welcome to visit company and our products.
Also, we can talk more about the technique details if you need.

Q6 : What is the warranty of your products?
A6 : Our products have at least 1 year warranty,if any quality problems,
we will take responsibility of the cost of the shipment and the replacement.

Q7: What's the MOQ of trial order?
A7 : No limit, we can offer the best suggestions and solutions according to your condition.

Q8: Why choose us?
A8: We had been in this line for more than 25 years, we can not only provide you high
quality products with competitive price, but also we can supply good technique service
which can help you solve problems.
