Specifications
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
10-15days
Certification :
ISO CE SGS
Place of Origin :
China
Brand Name :
SUNWOOL
Model Number :
1-10MM
Supply Ability :
10000 rolls/month
Packaging Details :
Carton box
Refractoriness :
1050-1800C
Size :
Customizable

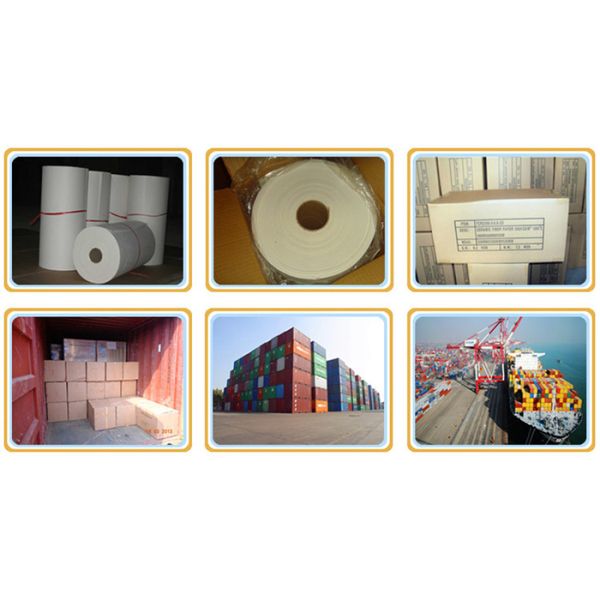

Package :
bag or carton box or pallet
Shape :
Customizable
Color :
White
Type :
blanket board module paper textile
Description
Brief description

Leadsun ceramic fiber paper, is a lightweight refractory material processed from a blend of high purity alumina-silica fibers into a highly flexible, uniform sheet.

Ceramic fiber paper, has low shrinkage, good handling strength, and low thermal conductivity. it contains a small amount of organic binder for processing which makes it flexible, yet reduces off-gassing and odour during use. our product has a highly uniform structure due to its controlled basis weight and thickness, assuring homoaeneous thermal conductivity and a clean, smooth surface ideal for gasketing or sealing.

Ceramic fiber paper is completely free to asbestos and is designed to be an economic replacement for asbestos paper in most applications.

Technical data
Grade Standard High Pure High Aluminium Zirconium
Max. Temperature (C) 1050 1150 1260 1430
Shrinkage on Heating (%) 800C×24h≤-3 1000C×24h≤-3 1280C×24h≤-3 1400C×24h≤-3
Organic Content (%) ≤5 ≤5 ≤5 ≤5
Thermal conductivity by mean temp. (W/m.k.) (250kg/m3) 200℃ 0.055~0.065 0.060~0.070
400℃ 0.110~0.120 0.105~0.125
600℃ 0.160~0.170 0.170~0.180
Chemical Composition (%) AL2O3 43 47 55 38
SiO2 53 51 44 44
Fe2O3 + Ti2O3 ≤1.2 ≤0.3 ≤0.3 ≤0.2
CaO + MgO ≤0.3 ≤0.3 ≤0.3 ≤0.2
NaO + KO2 ≤0.5 ≤0.3 ≤0.3 ≤0.2
Density (kg/m3) 170~230
Features
  • Easy to wrap, shape or cut
  • Lightweight
  • Low thermal conductivity; Low heat storage
  • Good uniformity and smooth appearance
  • Good flexibility and toughness and resistance to avulsion
  • Good dielectric strength and sound insulation
  • Excellent thermal shock resistance
  • Excellent chemical satability and machining property
  • Excellent corrosion resistance
Applications
  1. Die cut gaskets between castings in coke oven doors, blast furnace hot air piping, aluminium heat treating furnace, tuyeres and heat treat furnaces.
  2. Backup for brick and monolithic refractories in blast furnace stoves, piping, tundish, ladle, hot metal cars, trough etc.
  3. Mould wrapping for controlled cooling
  4. SEN isulation wraping
  5. Shield for welding & brazing operation
  6. Rotary klin back-up insulation
  7. Fabricated into tapout cones for Aluminium industry.
  8. Strips in bottom of ingot mould for sealing
  9. Expansion joint packing
  10. Induction coil liner Mould liner
  11. Silencer interleaf
  12. Ladle & tundish insulation
  13. Asbestos paper replacement
  14. Hot top linings
  15. Thermal and electrical insulation
