High Temperature MgO Bricks Refractory Magnesium Bricks For Glass Kiln Furnace Rotary Kiln
High Temperature MgO Bricks Refractory Magnesium Bricks For Glass Kiln Furnace Rotary Kiln
High Temperature MgO Bricks Refractory Magnesium Bricks For Glass Kiln Furnace Rotary Kiln
High Temperature MgO Bricks Refractory Magnesium Bricks For Glass Kiln Furnace Rotary Kiln
High Temperature MgO Bricks Refractory Magnesium Bricks For Glass Kiln Furnace Rotary Kiln
High Temperature MgO Bricks Refractory Magnesium Bricks For Glass Kiln Furnace Rotary Kiln
Specifications
Brand Name :
LEADSUN
Model Number :
All Magnesia Series Brick
Certification :
ISO CE
Place of Origin :
China
MOQ :
100 pcs
Price :
1.0usd - 8.0usd
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
2000 tons/month
Delivery Time :
20 days
Packaging Details :
Pallet
Refractoriness :
1300-1900C
Size :
customizable
Package :
pallet
Type :
MgO-Al,MgO-C,MgO-Ge,MgO-
Color :
Black, Brown
Density :
2.9-3.3g/cm3
Description

Refractory Magnesium Brick for Glass Kiln Furnace Rotary Kiln High Temperature 92-98% MgO


Series:

Direct bonded Magnesia-Chrome Brick

Magnesia Chrome Bricks

Magnesia Zirconia Bricks

Magnesite Alumina Brick

Magnesite Alumina Spinel Brick

Magnesite Brick

Rebonded Magnesia-Chrome Brick

Semi Rebonded Magnesia Chrome Brick



Magnesium-chrome brick magnesia (MgO) and chromium oxide (Cr2O3) as the main ingredient, periclase and spinel as the main mineral components of refractory products. The main raw material to manufacture magnesium chrome brick is sintered magnesia and chromite. Purity magnesia raw material to be as high as possible, the requirements of the chemical composition of chromite is: Cr2O3: 30 ~ 45%, CaO: ≤1.0 ~ 1.5%.

Common magnesite chrome brick

Item

MGe6

MGe8

MGe12

MGe16

MgO %

80

72

70

65

Cr2O3 %

7

10

13

17

CaO %

1.2

1.2

1.2

1.2

SiO2 %

3.4

4

4

4.2

Al2O3 %

4.5

6.5

6

6

Fe2O3 %

4

4.8

5.5

6.5

Apparent Porosity %

17

18

18

18

Bulk Density g/cm3

3

3

3.02

3.05

Cold Crushing Strength Mpa

55

55

55

50

Refractoriness Under Load °C

1600

1600

1600

1600


Direct-Bonded magnesite chrome brick

Item

DMGe4

DMGe8

DMGe12

DMGe16

MgO %

85

77

74

69

Cr2O3 %

5.5

9.1

14

18

CaO %

1.1

1.4

1.2

1.2

SiO2 %

1.3

1.2

1.2

1.5

Al2O3 %

3.5

4

3.5

4.5

Fe2O3 %

3

6.4

5

5.7

Apparent Porosity %

18

18

18

18

Bulk Density g/cm3

3.02

3.04

3.06

3.08

Cold Crushing Strength Mpa

50

50

55

55

Refractoriness Under Load °C

1700

1700

1700

1700

Thermal expansion %
1000°C

1

1

1

0.9

Thermal expansion %
1600°C

1.8

1.8

1.8

1.6
MgO contents range from 85% to 98%
Widely used throughout metallurgical industry

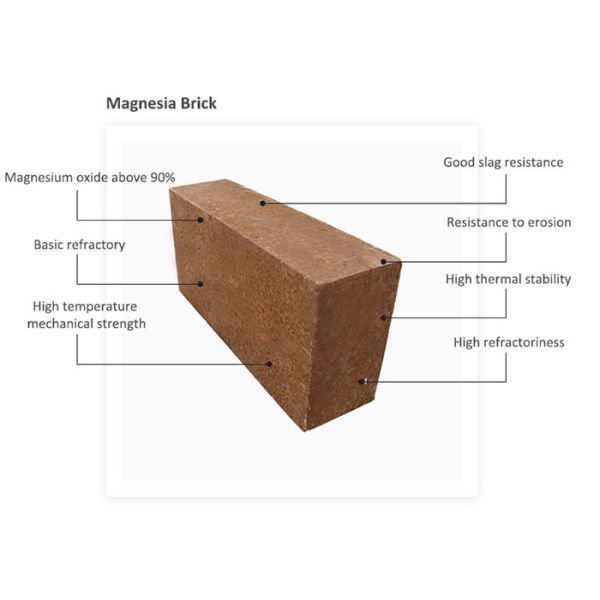

Regular Magnesia brick are made from dense dead burned magnesia that makes the bricks in good refractoriness, corrosion-resistance, and widely used in checker chamber of glass tank, lime kiln, non-ferrous metallurgical furnaces, open heart furnace, iron mixer and EAF of steel-making, and also ferro-alloy furnace, etc. The bricks with MgO 95% or more in content take the secondary-burning dead burned magnesia or electrofused magnesia as the raw material and burned under the condition of ultra high temperature. They have the features of highly directly bonded and corrosion-resistance and widely used in various kinds of high temperature furnaces

Features
1.Higher temperate resistant with good refractoriness
2.Good performance in high temp refractoriness under load
3.Excellent resistance in slag abrasion
4.Higher bulk density
5.Lower apparent porosity
6.Lower impurity content

Application
1.Nonferrous Metal Furnace
2.Rotary & Shaft Kiln
3.Various Incinerator
4.Reheating Furnace
5.PermanentLining For EAF Ladle
