380V 50Hz Butyl Extruder Machine PLC Control System Touch Screen Interface
380V 50Hz Butyl Extruder Machine PLC Control System Touch Screen Interface
380V 50Hz Butyl Extruder Machine PLC Control System Touch Screen Interface
380V 50Hz Butyl Extruder Machine PLC Control System Touch Screen Interface
Specifications
Brand Name :
lijiang-glass
Model Number :
LJTB 01
Certification :
CE
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiable
Packaging Details :
carton
name :
Lijiang-glass LJTB 01 Butyl Extruder Machine
Equipment Advantages :
PLC control system, touch screen interface
Condition :
New
Power supply :
380V 50Hz
Description

380V 50Hz Butyl Extruder Machine PLC Control System Touch Screen Interface

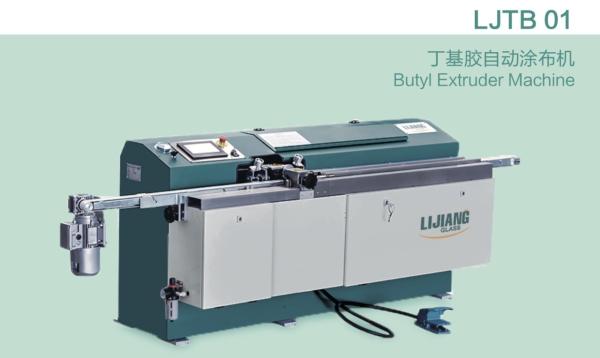

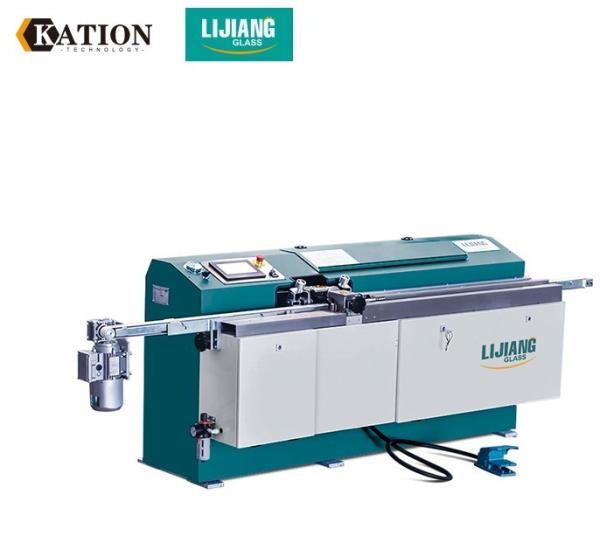

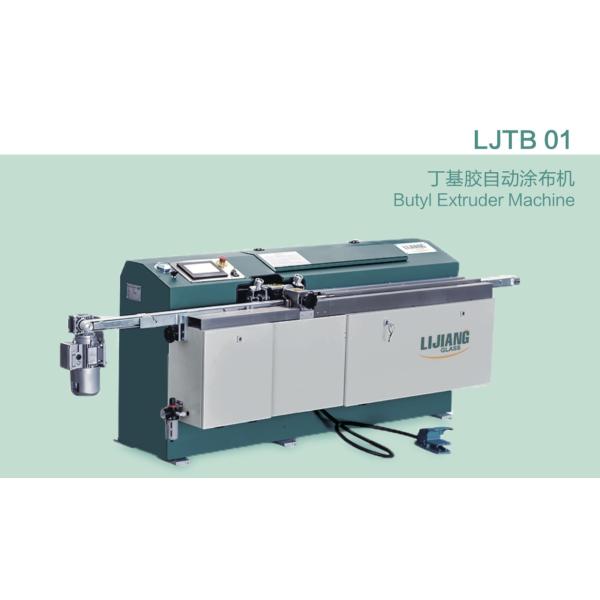

Butyl Extruder Machine

Equipment Advantages

PLC control system, touch screen interface
Automatically adjust the amount of glue according to different speeds
Automatically identify the width of aluminum bar, accordingly glue nuzzle can adjust automatically Hydraulic system uses German components to ensure that the glue is even and full
Fast preheat, improve work efficiency→with preheating function
With exhaust and inflatable function, improve coating quality and save time for feeding glue Quickly coating speed,can up to 47m/min

技术参数

Technical Data

Squeeze pressure:10- 18MPa

Temperature :110~140°C

Aluminum spacer width:6A-27A

Speed :5- 47m/min

Diameter of butyl cylinder:200mm
Air pressure:≥0.6MPa
Total power: 380V 5.7KW 50HZ
Dimension: 2800x700x900mm (LxWxH)

Weight:650kg

Total power 380V 5.7KW 50HZ
Dimension 2800x700x900mm (LxWxH)
Speed 5- 47m/min
Weight 650kg

380V 50Hz Butyl Extruder Machine PLC Control System Touch Screen Interface380V 50Hz Butyl Extruder Machine PLC Control System Touch Screen Interface
