High Efficient Horizontal Glass Washing Machine 3mm-25mm Glass Thickness
High Efficient Horizontal Glass Washing Machine 3mm-25mm Glass Thickness
High Efficient Horizontal Glass Washing Machine 3mm-25mm Glass Thickness
High Efficient Horizontal Glass Washing Machine 3mm-25mm Glass Thickness
High Efficient Horizontal Glass Washing Machine 3mm-25mm Glass Thickness
High Efficient Horizontal Glass Washing Machine 3mm-25mm Glass Thickness
High Efficient Horizontal Glass Washing Machine 3mm-25mm Glass Thickness
High Efficient Horizontal Glass Washing Machine 3mm-25mm Glass Thickness
Specifications
Brand Name :
LIJIANG
Model Number :
LJWBQJ2500
Certification :
UL
Place of Origin :
CHINA
MOQ :
1
Price :
20,000USD
Payment Terms :
L/C, T/T
Supply Ability :
10units/month
Delivery Time :
8 work days
Packaging Details :
container
Max. glass size :
400 mm * 400 mm
Voltage :
Requirements
Condition :
New
Color :
Blue or customize
Name :
Vertical-glass glazed washing and drying machine
Description

High Efficient Horizontal Glass Washing Machine

LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

Horizontal Glass Washing Machine with Soft Low e Brushes LJWBQJ2500

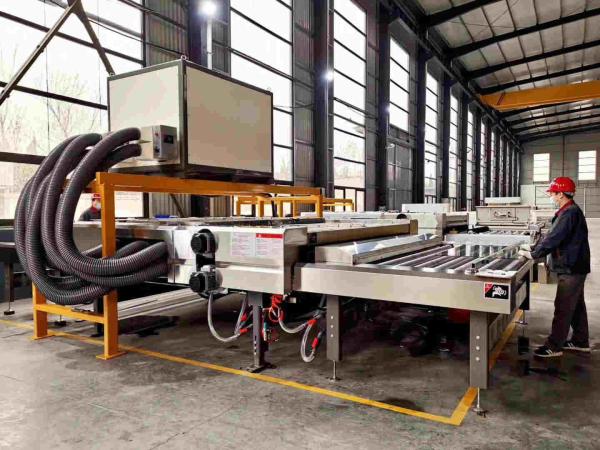

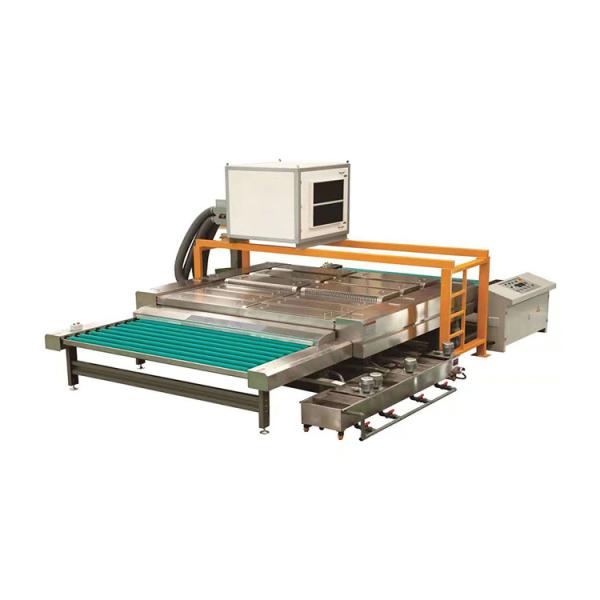

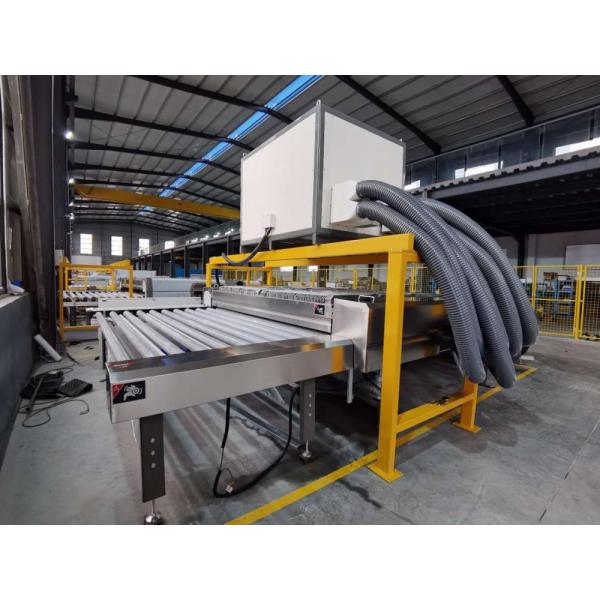

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out goingsegment.

Structural characteristics:

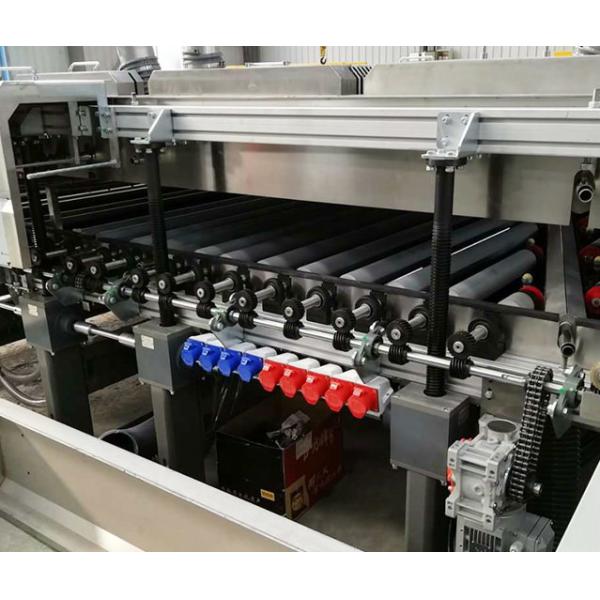

This cleaning machine adopts horizontal structure, which is used for cleaning and drying plate type glass;


-The main part consists of inlet, cleaning, drying, and out of film

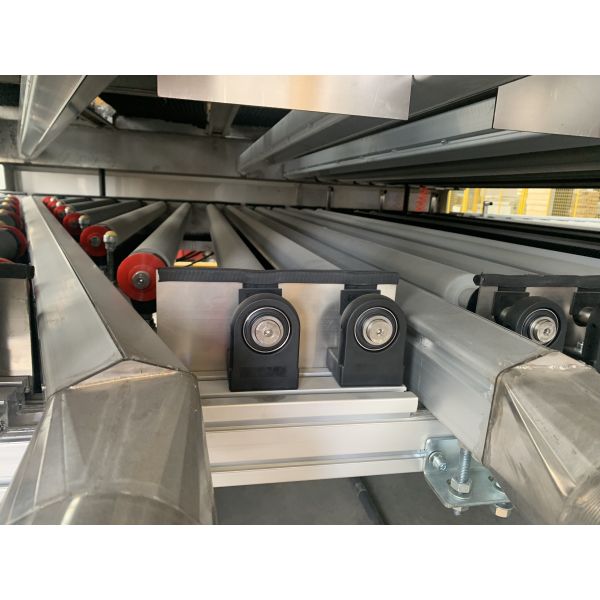

-Conveyor adopts chain transmission
-The machine has 1 water tank. primary washing
-There are 4 groups of brushes and 3 groups of absorbent cotton within the machine

-Reliable, good cleaning effect, easy to adjust;

-Conveying glass Frequency Control, easy to control, is more conducive to connect the bilateral edging production lines, glaze line, insulating glass production line, safety glass production lines

-special cleaning requirements or attached features can be customized

- the transmission adopts gear transmission, variable frequency speed regulation, digital display, easy to operate, it is conducive to connecting the production line

- the cleaning department and the wind cadres overall lifting, the highest lift is 400mm, easy to clean the internal rubber roller and maintenance

- by three to two on the hard brush brush cleaning, in front of the available cylinder lifting, cleaning all kinds of Low-e glass on soft brush with third.

- wind cadres use professional design of two pairs of wind knife, wind knife wind dry better effect!

High Efficient Horizontal Glass Washing Machine 3mm-25mm Glass ThicknessHigh Efficient Horizontal Glass Washing Machine 3mm-25mm Glass ThicknessHigh Efficient Horizontal Glass Washing Machine 3mm-25mm Glass ThicknessHigh Efficient Horizontal Glass Washing Machine 3mm-25mm Glass ThicknessHigh Efficient Horizontal Glass Washing Machine 3mm-25mm Glass ThicknessHigh Efficient Horizontal Glass Washing Machine 3mm-25mm Glass ThicknessHigh Efficient Horizontal Glass Washing Machine 3mm-25mm Glass Thickness

Maximum glass width 2500mm (effective maximum: 2650mm)
Minimum glass specification 400mm×400mm (limited to single row on left and right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±25mm
Total power 42KW(water-bearing wind heating: 15KW)
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 380V 50Hz
Dimensions (length × width × height) approximately 6260*4800*3100
Weight 3940kg

LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE
