Low Noise Glass Production Machinery / High Efficienc Sealing Robot
Low Noise Glass Production Machinery / High Efficienc Sealing Robot
Low Noise Glass Production Machinery / High Efficienc Sealing Robot
Low Noise Glass Production Machinery / High Efficienc Sealing Robot
Low Noise Glass Production Machinery / High Efficienc Sealing Robot
Low Noise Glass Production Machinery / High Efficienc Sealing Robot
Low Noise Glass Production Machinery / High Efficienc Sealing Robot
Low Noise Glass Production Machinery / High Efficienc Sealing Robot
Specifications
Brand Name :
Lijiang
Model Number :
LJTJ2540
Certification :
CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable,
Payment Terms :
L/C, T/T
Supply Ability :
10set/month
Delivery Time :
30days
Packaging Details :
wooden case or container
Name :
Sealing robot for insulating glass
Advantage :
for shape insulating glass processing
Max size :
2500*4000mm
Description

Full Automatic and high-efficienc Silicon Sealing Robot for Insulating Glass Processing

This type of machine is a full automatic and high-efficienc sealing robot for insulating glass processing. Automatically measure glass size, glue depth and glue speed with linear adjustment. Single-function parts are equipped with manual functions, easy adjustment.Can coating more than 8 kinds of shaped glass,include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc.

Main Feature
* Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) , stepped glass(option)
* Can coat triple glass by one time
* Fast reacting and volume controlled dosing system for IG glass, 2-component sealant
* The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner
* Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
* Electric and compressed air switch valve:Ensure electrical automatic switch, stable performance and uniform coating.
* Japan YASKAWA servo motor and CPU,Siemens low-voltage electrical appliances.
* Using two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.

Low Noise Glass Production Machinery / High Efficienc Sealing RobotLow Noise Glass Production Machinery / High Efficienc Sealing Robot

Technical data

Max. glass size 2500*4000mm (Optional)
Min. glass size 300*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure ≥0.6MPa
Squeeze pressure 32MPa
Voltage power 380V 12kw
Overall dimension 11000*2000

Low Noise Glass Production Machinery / High Efficienc Sealing Robot

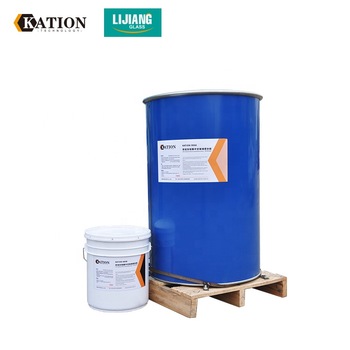

Big drum silicone sealant for Insulating glass

Low Noise Glass Production Machinery / High Efficienc Sealing Robot

Product Name Chinese factory insulating glass two component silicone sealant
Type Two part silicone sealant
Mixed Specific Gravity 1.38-1.39g/ml
The mixing ratio A:B10:1
Density 1.5(g/cm3)
Usage Construction, insulating glass/ hollow glass
Material silicone
packaging drum or customized
Color black and white
Port Qingdao
Product Keywords insulating glasstwocomponentsilicone sealant,twocomponentbig drum neutralsiliconesealants190L 19L,insulating glasstwocomponentneutralsiliconesealant


Low Noise Glass Production Machinery / High Efficienc Sealing RobotLow Noise Glass Production Machinery / High Efficienc Sealing Robot

Low Noise Glass Production Machinery / High Efficienc Sealing RobotLow Noise Glass Production Machinery / High Efficienc Sealing Robot

With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
