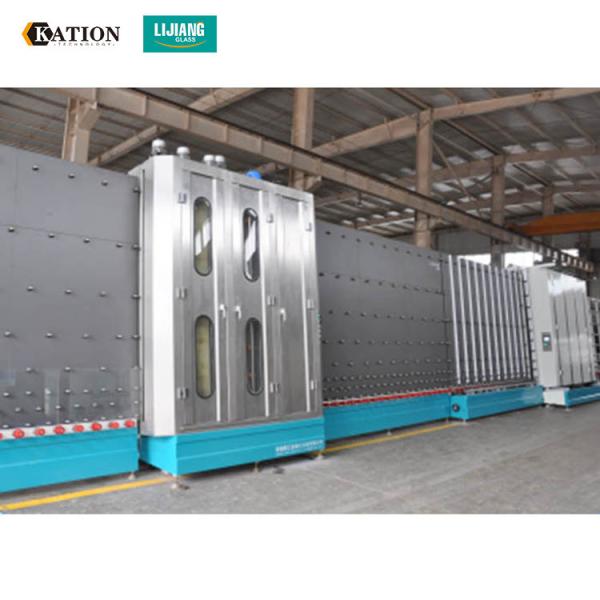

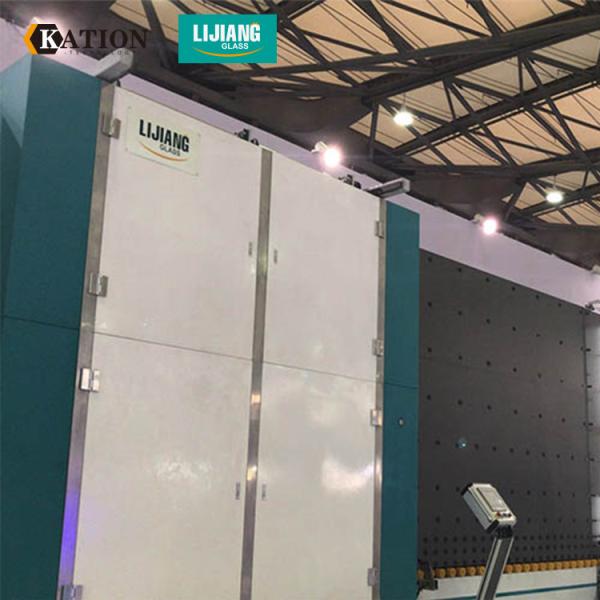

Automatic Insulating Glass Production Line LJBZ2535

Product description

LIJIANG IG line(glass processing machinery) adopts the latest technology, its main purpose is to create high-end quality and provide a great deal of useful functionality, improve production efficiency, save production costs and produce maximum benefits.

Now LIJIANG mainly has two kinds of IG line with different two different technologies. One uses transfer wheels to transport glass, and the other is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.

Specification

• Transfer wheels VS air-floating technology

• There is the Low-e glass sensor in the washing machine

• The washing machine uses 304 stainless steel materials

• The washing machine uses six soft (Low-e) brushes with the 0.1mm diameter only.

• glass production machinery Using Europe's advanced anti-noise system to create a good working environment for employees

• Water heating system and water filter system

• The special structure inside the washing machine can automatically recognize glass thickness. Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*m insulating glass.

• The pressing box uses servo motor and timing belt to support pressing IG units.

• It is the first one in China to use adjustable points to ensure that the platen will never deform.
• Energy saving of pressing box
• Automatic High - speed filling argon gas
