Specifications
Brand Name :
Lijiang
Model Number :
LJBZ2535
Certification :
CE UL
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
20 SETS PER MONTHS
Delivery Time :
20DAYS
Packaging Details :
WOODEN BOX OR PLASTIC FILM
Name :
Glass Washing Machine
Feature :
High Speed
Min Glass size :
350*450mm
Dgu Thickness :
80mm
Flat glass thickness :
3-15mm
Glass washing speed :
6-15m/min
Glass conveyor Speed :
45m/min
Triple Glass :
Available
Step glass :
Available
Washing Brushes :
3 pairs
Description

Glass washing machine with max glass szie 2500*3500mm Insulating glass production line

1, Insulating glass production line Introduction

Washing and drying part

Glass loading machine use coating inspection -metal film conductiver to avoide wheel marks or scratch low-e Coating

Glass washing machine have pairs soft brushes can wash low-e glass and normal glass

the diameter is less than 0.1mm.

High Speed Glass Washing Machine , Glass Production Line Intelligent Control

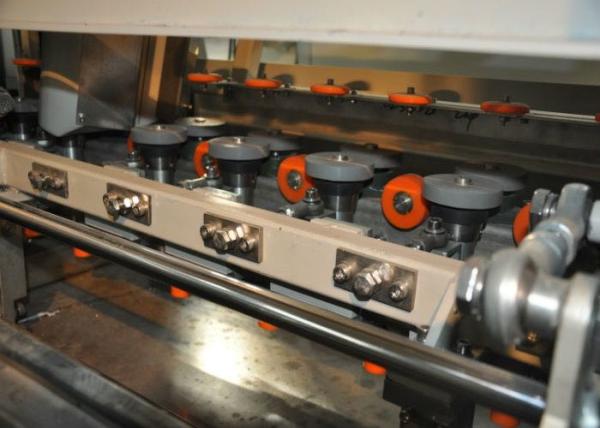

Washing and drying Glass machine is using stainless steel.

Washing and drying Glass machine have Air knife is float design ,

Washing and drying Glass machine always keep the right and suitable distance 3mm between the glass surface and air knife

High Speed Glass Washing Machine , Glass Production Line Intelligent Control

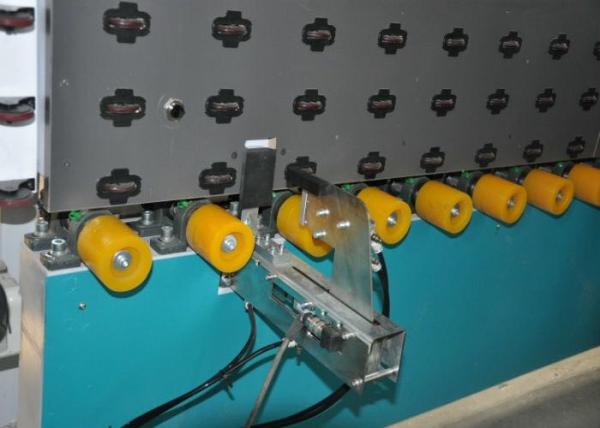

The front and back side squeeze wheel of Washing and drying Glass machine are all actively moved and convey.

No mater the glass size is big /small or thickness different(8mm) ,

it all guarantee the glass pass through smoothly.(Same like LISEC)

High Speed Glass Washing Machine , Glass Production Line Intelligent Control

Main Parameter

Washing speed 10~15m/min
Max.working speed 45m/min
Washing glass thickness 3~15mm
Max.insulating glass thickness 80mm
Conveyor height 500mm
Min.glass size 450×280
Max.glass size

2500×4000

step glass Available
shped glass Available
triple glass Available

Main Products

Vertical Insulated Glass Produce Line for double glass production line

Auto Sealing Robot for double glass production line

Sealant Spreading Machine for double glass production line

Low-E Glass Washing &Drying Machine for double glass production line

Smart Edge Deleting Machine for double glass production line

Automatic Spacer Bending Machine for double glass production line

Automatic Desiccant Filling Machine for double glass production line

Butyl Extruder Machine for double glass production line

Glass Edge grinding Machine for double glass production line

Spacer Cutting Machine for double glass production line

Sealing gun Freezer for double glass production

Rotated Sealant Spreading Table double glass sealing

Argon Gas Filling Machine double glass

High Speed Glass Washing Machine , Glass Production Line Intelligent Control

High Speed Glass Washing Machine , Glass Production Line Intelligent Control

Exhibition show

High Speed Glass Washing Machine , Glass Production Line Intelligent Control

National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America, Mexico glass expo .Big Five In Dubai, Egpyt.

Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.

Contact way

JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD

Name: Rose

Mob/Whatsapp/wechate:+86 130 7535 5217

QQ:904878044

Skype:904878044@qq.com

Web:www.lijiang-glass.com

EMAIL: Sales@lijiang-glass.com
