PLC Control Insulating Glass Production Line Automatic Circle Spacer Bending Machine
PLC Control Insulating Glass Production Line Automatic Circle Spacer Bending Machine
PLC Control Insulating Glass Production Line Automatic Circle Spacer Bending Machine
PLC Control Insulating Glass Production Line Automatic Circle Spacer Bending Machine
PLC Control Insulating Glass Production Line Automatic Circle Spacer Bending Machine
PLC Control Insulating Glass Production Line Automatic Circle Spacer Bending Machine
PLC Control Insulating Glass Production Line Automatic Circle Spacer Bending Machine
PLC Control Insulating Glass Production Line Automatic Circle Spacer Bending Machine
Specifications
Brand Name :
LIJIANG GLASS
Model Number :
LJZW2020
Certification :
CE
Place of Origin :
JINAN, CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Container
Production name :
Automatic spacer bending machine
Spacer size :
6A - 27A
Spacer types :
Aluminum spacer, stainless steel, warm spacer
Spacer shape :
Rectangle , circle , other 8 types of shape
PLC :
Germany Siemens
Spacer racks :
4 or 12
Length :
11m
Voltage :
380v 50Hz 3P
Description

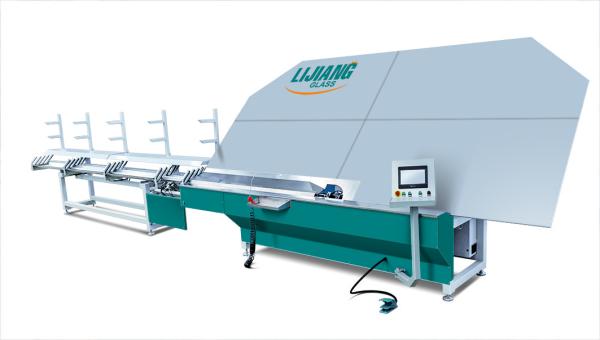

Jinan Automatic Circle Spacer Bending Machine for Making Double Glazing Glass

The spacer bending machine is used to bend frame for making double glazing glass, what is the mainly advantages of the spacer bending machine?

1. It is the automatic spacer bending machine. It can cut spacer, bend spacer, feed spacer and advoid the spacer pins automatically. There are 4 sets of racks to storage different sizes of spacers. You can request 12 racks.

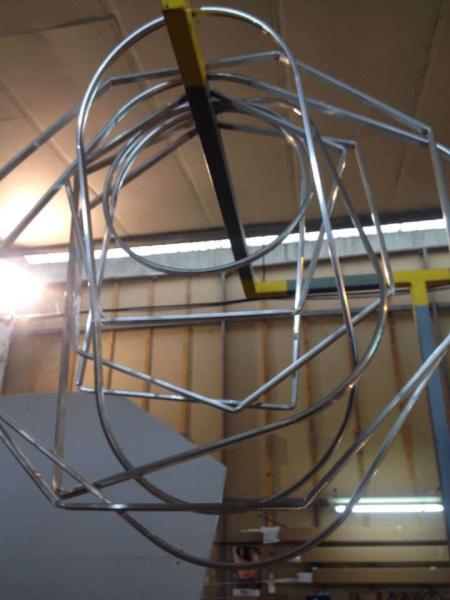

2. It can bend rectangle frame and other 8 typles of shapes, such as circle, semicircle and arc frame.

3. It can bend aluminium spacer, stainless steel bars and warm-edge spacer. But SS and warm spacer are optional.

4. The automatic spacer bending machine has many good and special functions, such as USB function, printing logo, printing label or ERP functions.

5. The spacer bending machine works very fast, 20s for one 1m*1m frame.

Max spacer size 2000mm*2000mm
Min spacer size 250mm*200mm
Spacer width 6A - 27A
Angle corner <1
Voltage 380V 50Hz 3P
Bending speed 20s for 1m*1m frame
Dimension 10500mm*2200mm*2600mm
Machine brand LIJIANG GLASS
Dimension error <0.5mm

PLC Control Insulating Glass Production Line Automatic Circle Spacer Bending Machine

Details of discription :

PLC Control Insulating Glass Production Line Automatic Circle Spacer Bending Machine

PLC Control Insulating Glass Production Line Automatic Circle Spacer Bending MachinePLC Control Insulating Glass Production Line Automatic Circle Spacer Bending Machine
