Double Glue Sealants Sealing Robot For Coating Double Glazing Glass

Main Features:

• Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine

• 4 sections, can storage glass

• Adopt timing belt, smooth transfer and accurate position

• Automatically repair glass corners with scraper and roller

• Automatically measure glass size, glue depth (30mm)

• Every auto-function is with manual operation

• Can coat double glass

• Shape glass with optional edges, step glass, triple glass (Optional)

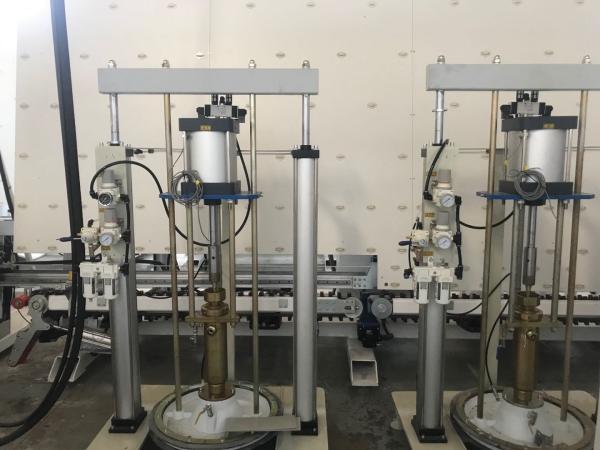

• One set of booster pump controls two groups of sealants (Optional)

• Can use silicone, polysulfide and silicone structural sealants

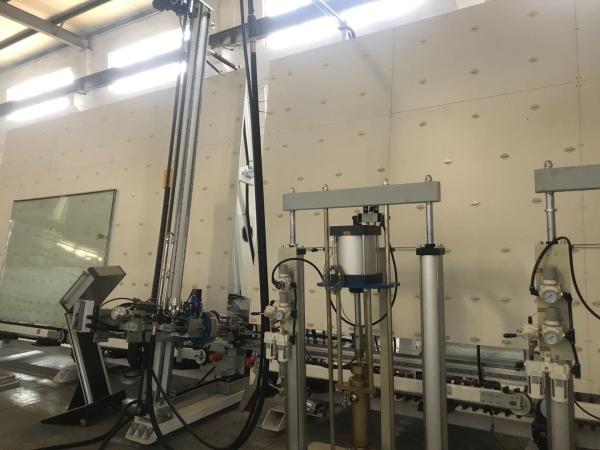

• Glue head is in the front of the machine, which is easy for coating step glass

• Can be connected with insulating glass processing line

• With code scanning function (Optional)

Technical data:

Insulating glass sealant :

Polysulfide sealants, polyurethane sealants, silicone sealants

(1) Anti gas leakage capability;

(2) anti water vapor permeability capability;

(3) anti ultraviolet capability;

(4) anti water permeability capability;

(5) bonding system is structure.

Main performance features :

1. The whole machine is equipped with Yaskawa motion controller, servo control system and touch screen, which is more convenient and intuitive for operation, real-time display of technical parameters, simple and intuitive, data network transmission, stable and efficient

2. It can be used by connecting or stand-alone

3. Automatic memory function, good parameter setting, can be directly called, without repeated input

2. The glass corners are full without bubbles, and the glue output is controlled accurately

3. High degree of automation, improved production efficiency, suitable for glass deep processing enterprises,

4. The transmission is divided into four sections. The glass can be pre stored, which can effectively reduce the waiting time of the glass and effectively improve the efficiency

5. Automatic identification of glass size, automatic detection of glue depth and automatic adjustment of glue application speed

6. Synchronous belt drive to ensure smooth glass transportation and accurate positioning

7. High degree of standardization and accuracy of parts production, ensuring long-term stable use of the machine.

8. It can glue three glasses and two cavities, special shape and large and small pieces of glass

9. The machining center of parts is highly standardized, which can achieve interchangeability, improve the convenience of maintenance, and ensure the long-term stable use of the equipment;

11. The glass support module on the conveyor belt adopts the replaceable V-shaped block, which is simple and convenient to replace after wear and low cost;

12. The conveyor wheel with back plate adopts inlay design, making the glass run more smoothly;

14. Double glue supply system, one key switch

15. Automatic timing rubber discharging function, to prevent the solidification and blocking of the mixed rubber caused by the long time interval between two pieces of glass gluing due to manual operation;

16. The rubber mixing system adopts the anti blocking structure, which is easy to clean;
