Considerations

the glass must go through the mill before cleaning, otherwise it will cut the roller and remove the hair from the hair and reduce the service life.

according to the actual situation adjust the water temperature controller to set the temperature of electrical box, generally in 15 ~ 50 ° C, also can add neutral detergent, in order to achieve the best cleaning effect.

Adjust the speed control knob on the panel of the cleaning machine, and adjust the transmission speed according to the condition of the glass dirt.

The thickness of cleaning glass is 3~ 15mm, and the glass after drying is allowed to have a trace of water bead.

After the installation and adjustment, please follow the instructions in order to test the car. If the glass is broken due to bad adjustment, please quickly stop and clean the broken glass, so as not to scratch the brush and transfer roll.

All parts of the machine are well grounded.

Maintenance

In order to ensure the good operation of the machine, the daily maintenance and maintenance of the machine should be strengthened, and the inspection should be stopped immediately if abnormal conditions occur during operation. After troubleshooting, reboot.

Transmission maintenance

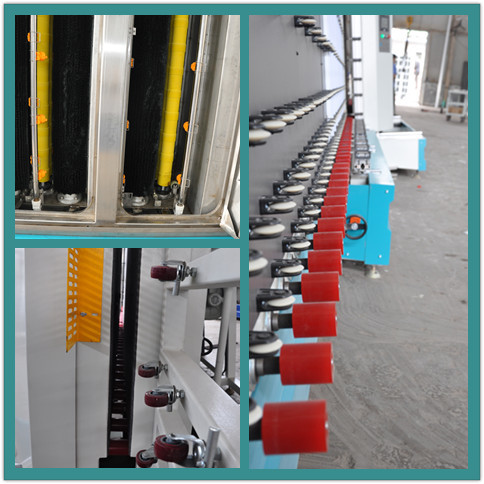

Each transmission roller bearing, brush roller bearing, transmission bearing, sprocket, and gear regularly add calcium base grease; The miniature worm gear reducer can replace 50#-70# gear oil every six months.

Waterway maintenance

The circulating water in the water tank should be changed in time, the water tank should be cleaned once a week, check the water spraying condition of the nozzle frequently, if the blockage should be removed.

Maintenance of wind road

Check the operating conditions of the fan regularly. If abnormal sound should be stopped immediately, clean the fan filter grid regularly, reduce the wind resistance and improve the cleanliness of the glass surface after drying.

Air road maintenance

The filter regularly releases water and oil mist.

LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits.

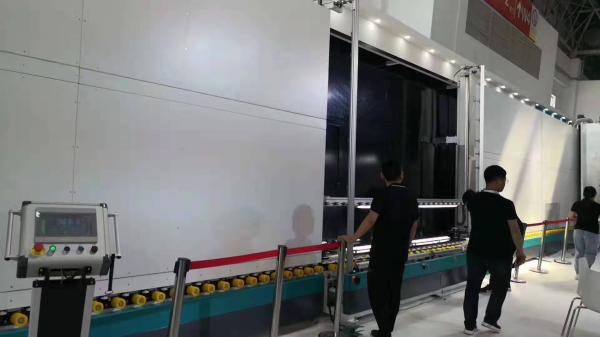

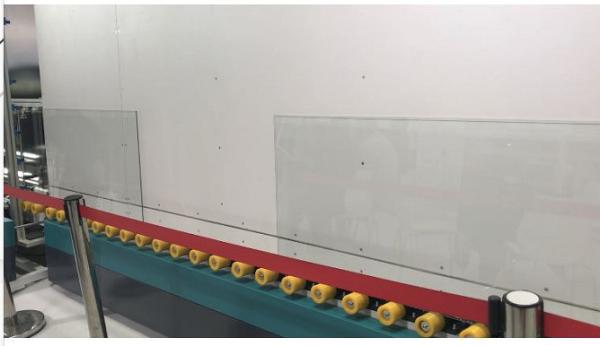

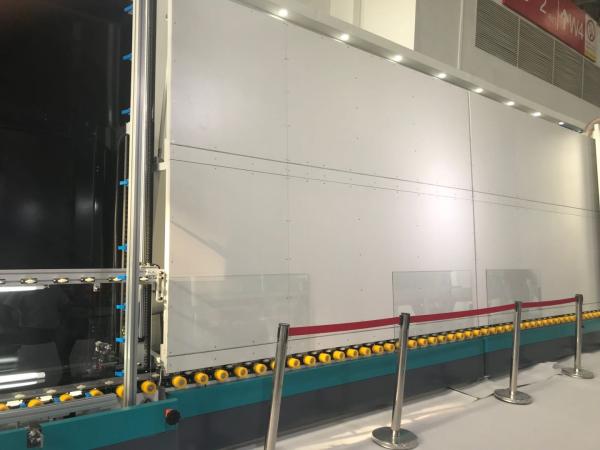

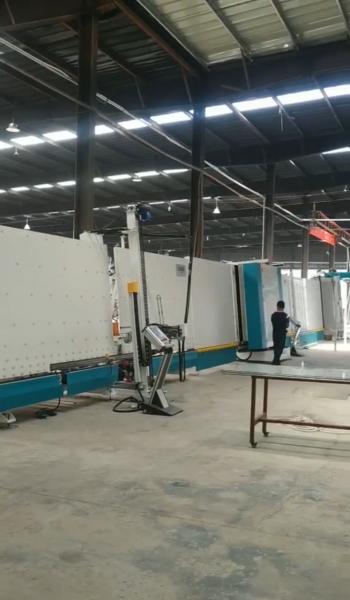

Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
