Specifications
Brand Name :
LIJIANG
Model Number :
QD400-03
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD4500/set
Payment Terms :
L/C, T/T
Supply Ability :
20sets/month
Delivery Time :
5-8work days
Packaging Details :
wooden box
name :
Cantilever crane
Max. load :
300kg (500kg is optional)
Rotated angle :
90°
Description

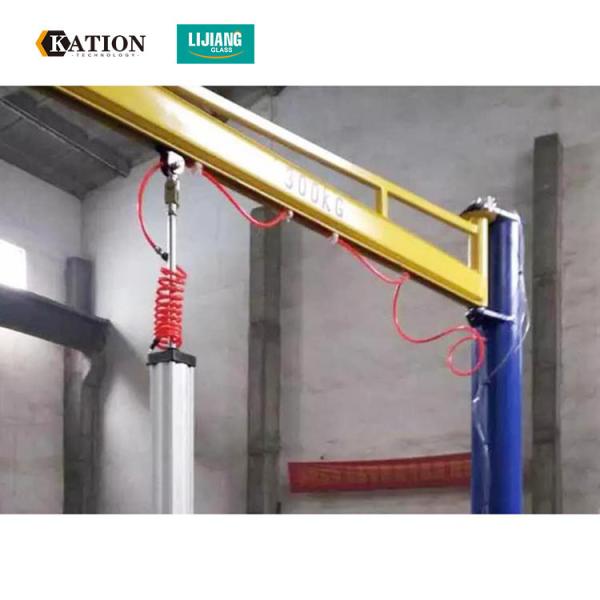

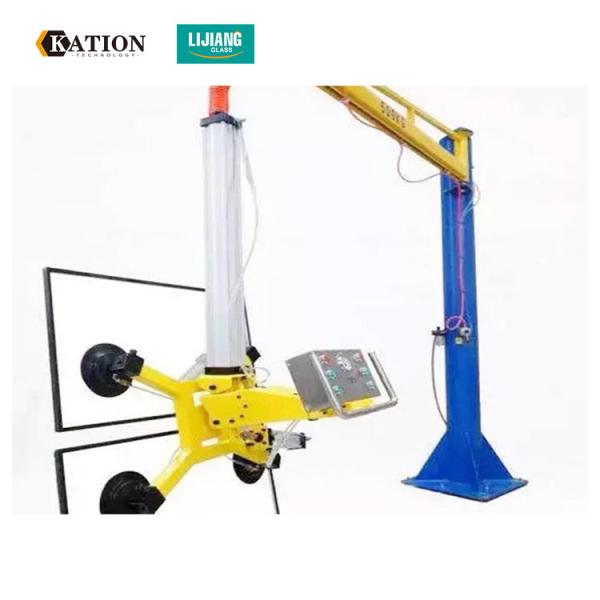

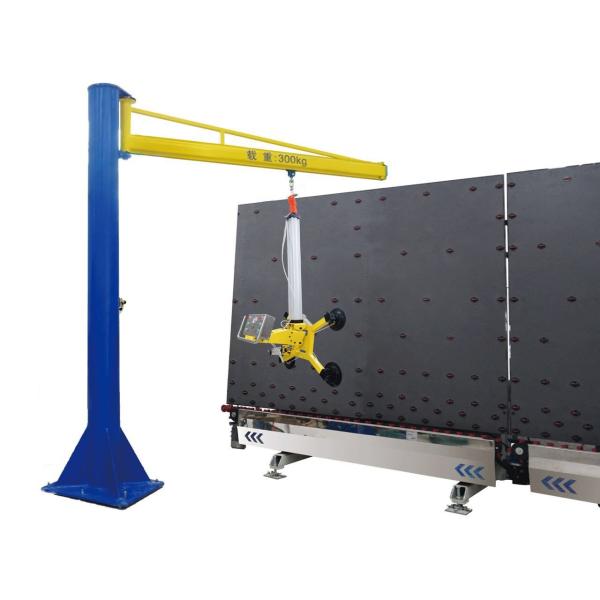

Glass Cantilever Crane with lifting sucker for insulating glass Processing

Technical data

Max. load 300kg (500kg is optional)
Rotated angle 90°
Upright height 3400mm or 3900mm
Rail length 1000mm
Quantity of sucker 2 or 4
Air pressure 0.5MPa-0.8MPa

Jib crane is common light lifting equipment in modern production. It is fit for frequent lifting work of short distance between fixed positions. It has advantages of high efficiency, energy saving, convenience, occupying a small area and easy operation and maintenance. Jib crane has two structures of pillar stationary type and binding type. You can choose either.

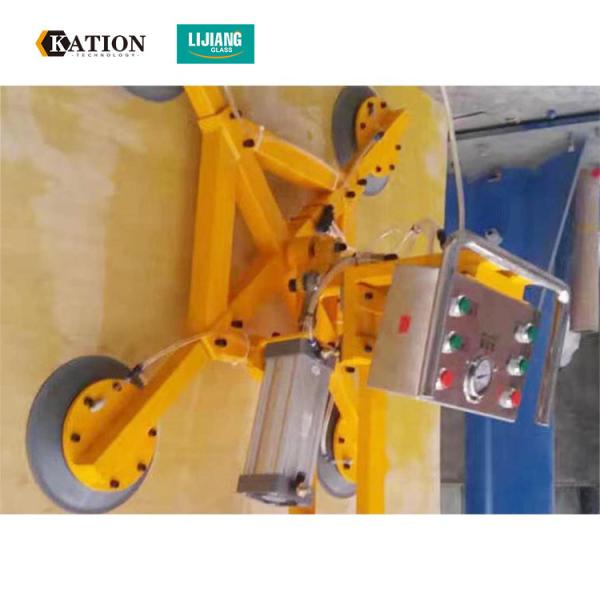

It is operated by using compressed air instead of using electricity. All pneumatic components, we use Japanese SMC brand, while we use German SCHMALZ products for vacuum parts which is the most advanced technology of pneumatic and vacuum control in the world.

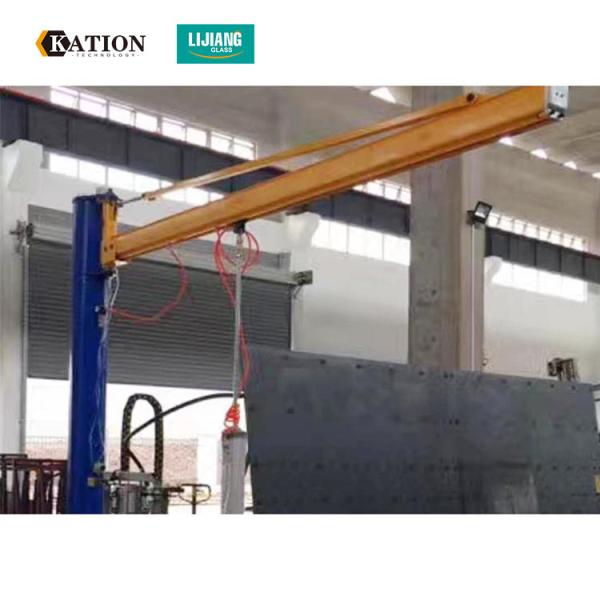

This machine is reliable and safe, easy to operate. The device is commonly used for glass loading and unloading work in glass deep processing process, such as cutting, grinding, cleaning, tempered, laminated and insulated. This device is usually used together with jib crane beam or gantry crane frame, depending on the client's requirements.

Insulating Glass Processing 300kg Glass Cantilever Crane With Lifting SuckerInsulating Glass Processing 300kg Glass Cantilever Crane With Lifting SuckerInsulating Glass Processing 300kg Glass Cantilever Crane With Lifting SuckerInsulating Glass Processing 300kg Glass Cantilever Crane With Lifting SuckerInsulating Glass Processing 300kg Glass Cantilever Crane With Lifting SuckerInsulating Glass Processing 300kg Glass Cantilever Crane With Lifting SuckerInsulating Glass Processing 300kg Glass Cantilever Crane With Lifting Sucker

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful Spring

city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.

The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. So that our company has became an vital domestic and foreign glass processing equipment supplier. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, South America, the Middle East, Southeast Asia, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the new butyl extruder machine, and the new fully automatic butyl extruder machine, its technology and quality have reached the leading level in China.

With the rapid development of insulating glass industry, Lijiang is looking forward to working with you for win-win situation and jointly creating a new world of China!
