Vertical 0.8mm Glass Washing And Drying Machine Frequency Control
Vertical 0.8mm Glass Washing And Drying Machine Frequency Control
Vertical 0.8mm Glass Washing And Drying Machine Frequency Control
Vertical 0.8mm Glass Washing And Drying Machine Frequency Control
Specifications
Brand Name :
Lijiang
Model Number :
LJLBQJ2500
Certification :
CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable,
Payment Terms :
T/T, L/C
Supply Ability :
10set/month
Delivery Time :
20days
Packaging Details :
wooden case or container
Name :
Vertical Washing And Drying Machine
Material :
Stailess stell touching water part
Advantage :
Brush for Low-e
Type :
Vertical
Description

Vertical Glass Washing And Drying Machine used for glass processing machinery

Description of glass cleaning machine

Glass cleaning machine is a special equipment for cleaning and drying glass surface in the process of glass making, vacuum coating, tempering, hot bending and insulating glass lamination. Glass cleaning machine is mainly composed of transmission system, brushing, water washing, pure water washing, cold, hot air drying, electric control system and so on

Main feature of glass washing machine

* The rubber roller is made of vulcanized rubber with stainless steel shaft；
* The washing part in contact with water is made of stainless steel；
* The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；
* Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency；
* Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；
* Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；
* The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning；
* Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；
* Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable,the service life is long, realizes the cleaning high request special glass；
* Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain；
* Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap
* Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.

Technical parameter

Max frame size 2000mm*2000nn (2500mm*2500mm)
Min frame size 300mm*250mm
Aluminum specifications 6A - 27A
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1.5KW
Molecular sieve diameter needed 0.5-0.8mm
Dimension 1650mm*1100mm*3600mm
Detail of Glass Washing And Drying Machine

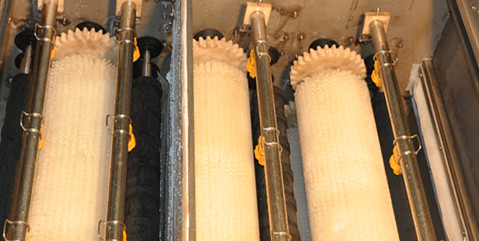

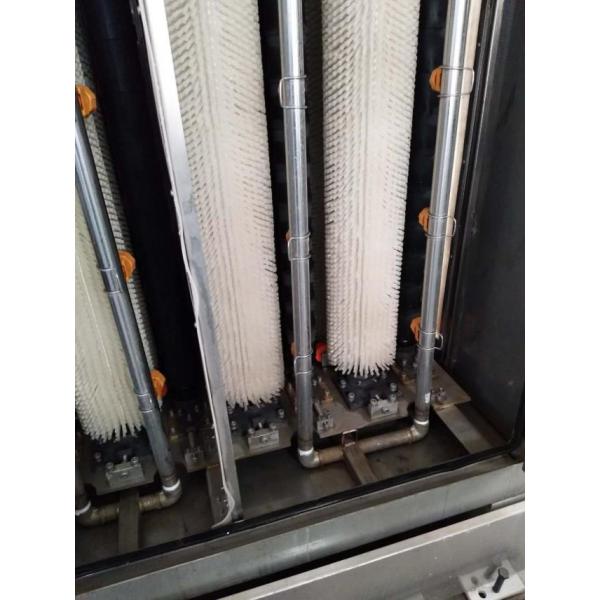

►The washing machine uses six soft (Low-e) brushes with the 01mm diameter only.

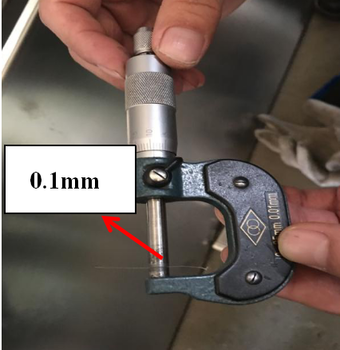

It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.

Vertical 0.8mm Glass Washing And Drying Machine Frequency ControlVertical 0.8mm Glass Washing And Drying Machine Frequency Control

►The noise can be controlled below 90 decibels by using nylon gear and sponges.Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.

Vertical 0.8mm Glass Washing And Drying Machine Frequency ControlVertical 0.8mm Glass Washing And Drying Machine Frequency Control

Related product

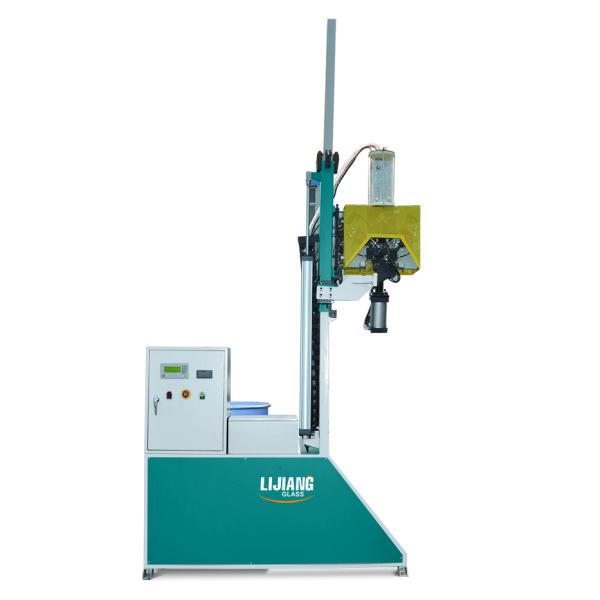

Desiccant Filling Machine LJGZ 2020A

Vertical 0.8mm Glass Washing And Drying Machine Frequency Control

Main feature

• Germany Siemens PLC control system

• Touching screen interface, simple and visible

• The height can be adjusted according to the size of spacer frame

• Automatically drilling, filling and sealing

• Automatically loading and replenish desiccant

• Filling time can be adjusted

• Using big plastic barrel, save feeding time and improve efficiency

• Protection device for machine head

• Adopt vacuum pump loading device ,increase the loading speed

• Core parts are imported brands

• Arc frame (optional)

• Fill large particle molecular sieve (Optional)

Vertical 0.8mm Glass Washing And Drying Machine Frequency Control

Vertical 0.8mm Glass Washing And Drying Machine Frequency Control

Vertical 0.8mm Glass Washing And Drying Machine Frequency Control

Vertical 0.8mm Glass Washing And Drying Machine Frequency Control
