H07VVH6 F PVC Flat Rubber Insulated Flexible Cable 8 Core Polyvinylchloride
H07VVH6 F PVC Flat Rubber Insulated Flexible Cable 8 Core Polyvinylchloride
Specifications
Name :
Rubber Flexible Cable
Application :
connecting movable parts of machine tools
core insulation :
polyvinylchloride (PVC)
outer sheath :
polyvinylchloride (PVC), black
Standard :
DIN VDE 0281-404
Temperature range :
-5°C till +70°C
Place of Origin :
Guangzhou, China
Brand Name :
SUNWIN
Certification :
ISO9001, ISO14001, OHSAS18001
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
100 m / tied, or customized
Delivery Time :
10 day
Payment Terms :
30% deposit, the balance is settled on the delivery date
Supply Ability :
100,000 m / month
Description

H07VVH6 F PVC Flat Rubber Insulated Flexible Cable 8 Core Polyvinylchloride

Application:

To be used in dry and humid locations but not in the open-air for low and medium-level mechanical loads. This cable is suitable for connecting movable parts of machine tools, material handling equipment and large machines provided it is exposed to bending in only one plane. Cables with more than 5 cores grouped with individual groups separated by a stay.

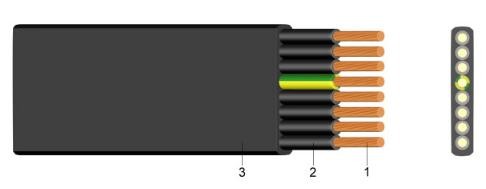

Construction:

1 ..... fine-stranded bare copper
2 ..... core insulation of polyvinylchloride (PVC), cores are laid up parallel
3 ..... outer sheath of soft polyvinylchloride (PVC), black

Standards:

DIN VDE 0281-404
DIN EN 60228 class 5 (construction)
HD 308 S2 (core identification)

Technical data:

Nominal voltage Uo/U [V] 450 / 750 volt
Test voltage [V]AC 2500
Temperature range in motion -5°C till +70°C
Operating temperature short circuit °C 160
Short circuit time max. [sec] 5
Bending radius min. x diameter 10
Flammability standard EN 60332-1-2

Number of cores and
nominal cross section

mm2		 Copper
figure

kg/km		 Cond.
construction
(appr. value)
mm		 Overall
measures
appr.
mm		 Weight

appr.
kg/km
4 G 1,5 60,0 30 x 0,26 5,0 x 15,0 150,0
5 G 1,5 75,0 30 x 0,26 5,0 x 18,0 180,0
7 G 1,5 105,0 30 x 0,26 5,0 x 27,0 265,0
8 G 1,5 120,0 30 x 0,26 5,0 x 29,0 295,0
10 G 1,5 150,0 30 x 0,26 5,0 x 36,0 355,0
12 G 1,5 180,0 30 x 0,26 5,0 x 41,0 415,0
4 G 2,5 100,0 50 x 0,26 5,7 x 18,5 250,0
5 G 2,5 125,0 50 x 0,26 5,7 x 22,0 280,0
7 G 2,5 175,0 50 x 0,26 5,7 x 33,5 385,0
8 G 2,5 200,0 50 x 0,26 5,7 x 37,0 430,0
12 G 2,5 300,0 50 x 0,26 5,7 x 51,0 630,0
4 G 4 160,0 56 x 0,31 6,9 x 21,5 320,0
5 G 4 200,0 56 x 0,31 6,9 x 26,0 390,0
7 G 4 280,0 56 x 0,31 6,9 x 38,0 560,0
4 G 6 240,0 84 x 0,31 7,6 x 24,5 430,0
5 G 6 300,0 84 x 0,31 7,6 x 29,5 530,0
4 G 10 400,0 80 x 0,41 9,6 x 31,0 690,0
4 G 16 640,0 128 x 0,41 10,9 x 35,5 970,0
4 G 25 1.000,0 200 x 0,41 12,7 x 41,5 1.405,0
4 G 35 1.400,0 280 x 0,41 15,7 x 49,0 2.035,0
4 G 50 2.000,0 400 x 0,41 19,1 x 61,5 3.000,0
