PVC Insulated Copper Control Cable Armoured For Ground And Water 0.6/1kv
PVC Insulated Copper Control Cable Armoured For Ground And Water 0.6/1kv
PVC Insulated Copper Control Cable Armoured For Ground And Water 0.6/1kv
PVC Insulated Copper Control Cable Armoured For Ground And Water 0.6/1kv
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
SUNWIN
Model Number :
Armoured Power and Control Cable
Supply Ability :
10000 Meter/Meters per Day
Packaging Details :
100 meters per roll or iron-wood drum package
MOQ :
1000 Mile/Miles
Price :
$1.00 - $100.00 / Miles
Certification :
IEC 60228 / DIN VDE 0295
Insulation Material :
PVC
Type :
Copper Control Cable
Application :
Construction
Conductor Material :
Copper
Jacket :
PVC
Port :
Guangzhou
Description

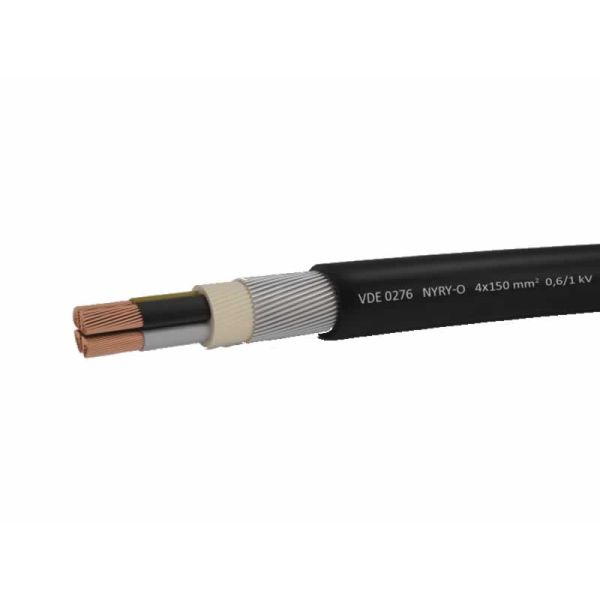

NYRY,NYRY-J,NYRY-O,0.6/1kv Copper PVC Insulated PVC Round Wire Armoured Power and Control Cable

NYRY,NYRY-J,NYRY-O (0.6/1kv Copper PVC Insulated PVC Sheathed Round Wire Armoured Power and Control Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Copper Control Cable Application:


Distribution and signal power cable for static application, mostly in ground, but also in water, within and outside facilities, in cable canals, in concrete. Used in electric power plants and other electric plants, in industry, metropolitan networks and for connection of signalling devices in industry, traffic and similar. Resistant to mechanical loads, able to sustain heavier mechanical tensile strains, could be laid slantingly or vertically, same as on grounds exposed to land-sliding.

NYRY Cable Construction:

Conductor: Cu, class 1 or 2 acc. to HRN HD 383 / IEC 60228 / DIN VDE 0295
class 1: solid, round (RE)
class 2: multi wire stranded, round (RM) or sector (SM), multi wire exceeding 50 mm² are compacted
Insulation: PVC compound, concentrically stranded cores, colour marked acc. to HRN HD 308 S2 / VDE 0293-308, with or without protective yellow-green conductor
Filler: spouted elastomer or plastomer compound or wrapped thermoplastic tapes
Armour: Single layer of thin round galvanized steel wires
Sheath: PVC compound
sheath colour: black


Specification Date Sheet:

*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length.

0.6/1kv Copper PVC Insulated PVC Sheathed Round Wire Armoured Power and Control Cable,NYRY,NYRY-J,NYRY-O specifications(data sheet,table,full form)
