PSSR68.DXEAKEIDMAX VEGAPULS SR 68 Radar sensor for continuous level measurement of bulk solids Standard radar sensor
PSSR68.DXEAKEIDMAX VEGAPULS SR 68 Radar sensor for continuous level measurement of bulk solids Standard radar sensor
PSSR68.DXEAKEIDMAX VEGAPULS SR 68 Radar sensor for continuous level measurement of bulk solids Standard radar sensor
PSSR68.DXEAKEIDMAX VEGAPULS SR 68 Radar sensor for continuous level measurement of bulk solids Standard radar sensor
PSSR68.DXEAKEIDMAX VEGAPULS SR 68 Radar sensor for continuous level measurement of bulk solids Standard radar sensor
PSSR68.DXEAKEIDMAX VEGAPULS SR 68 Radar sensor for continuous level measurement of bulk solids Standard radar sensor
Specifications
Brand Name :
VEGA
Model Number :
PSSR68.DXEAKEIDMAX
Certification :
rohs
Place of Origin :
GERMANY
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500+pcs+on stock
Delivery Time :
Negotiable
Packaging Details :
CARTON
Measuring range - Pressure :
-10 .... 1000bar
Origin :
Germany
lead time :
8-12week
Warranty :
1year
goods :
Brand new and original
color :
yellow
name :
PSSR68
successor :
VEGABAR 68
Description

PSSR68.DXEAKEIDMAX VEGAPULS SR 68 Radar sensor for continuous level measurement of bulk solids Standard radar sensor

PSSR68.DXEAKEIDMAX VEGAPULS SR 68 Radar sensor for continuous level measurement of bulk solids Standard radar sensorPSSR68.DXEAKEIDMAX VEGAPULS SR 68 Radar sensor for continuous level measurement of bulk solids Standard radar sensor

Application area

The large selection of process fittings and materials allows use in wide temperature and pressure ranges.

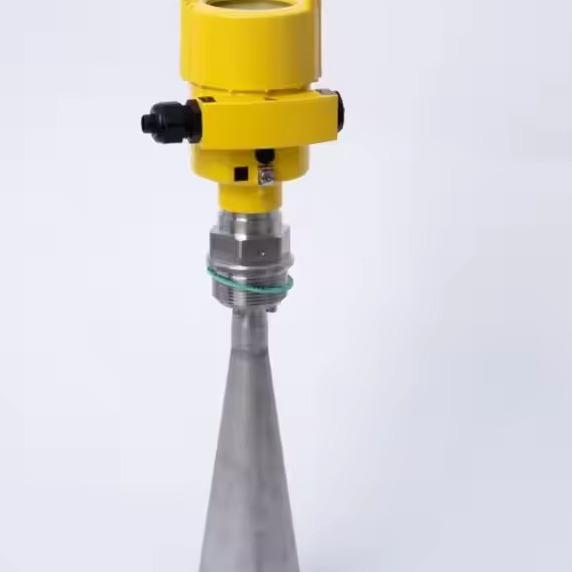

The VEGAPULS SR 68 is a radar sensor for continuous measurement of bulk solids even under difficult process conditions. It is particularly suitable for level measurement in high silos and large bunkers. The VEGAPULS SR 68 is an economical solution thanks to the simple setup and the reliable, maintenance-free operation.

Your benefit

  • High plant availability, because wear and maintenance-free
  • Maintenance-free operation through non-contact measuring principle
  • Reliable measurement independent of vapour, dust and noise

VEGAPULS SR 68

Instrument generation
plics®plus
Approval directive / Scope
ATEX / Europe
Approval
DXATEX II 1/2G, 2G Ex db ia IIC T5/T6
Version / Material
Ewith horn antenna (ø95mm) / 316L
Process fitting / Material
AKFlange NPS 4" Class 150 RF, ASME B16.5 / 316/316L
Seal / Process temperature
EFFKM (Kalrez 6230) and PEEK / -15...+250°C
Electronics
IFour-wire 4 ... 20 mA/HART; 9.6 ... 48 V DC; 20 ... 42 V AC
Overvoltage protection of the supply cable
  • without
Address setting
  • No
Housing / Protection
DAluminium double chamber / IP66/IP67
Cable entry / Cable gland / Plug connection
MM20x1.5 / without / without
Display/adjustment module PLICSCOM
Amounted
Additional equipment
Xwithout
Measuring range
30 m
Customer-specific adjustment
  • No
Customer or application-specific parameter adjustment
without
Linearization
No
Language of the PLICSCOM menu
EN - English
Operating instructions
DE - German
Number of operating instructions
1 ... 1000
Measurement loop identification label
  • without
Additional cleaning procedure
  • without
Test certificate
  • without
Certificate / Standard
without
Dye penetration test
  • without
Pressure test
  • without
Radiographic test
  • without
Helium leak test
without
PMI test
  • without
Isolation resistance test
  • without
Low temperature test at -60 °C
  • without
Durability test more than 360 h
  • without
Suitable for tropical regions
  • without
Supply certificates
  • no choice
Process pressure min.
-1
Max. process pressure in bar
19
Customs tariff number (HS code)
90318080
