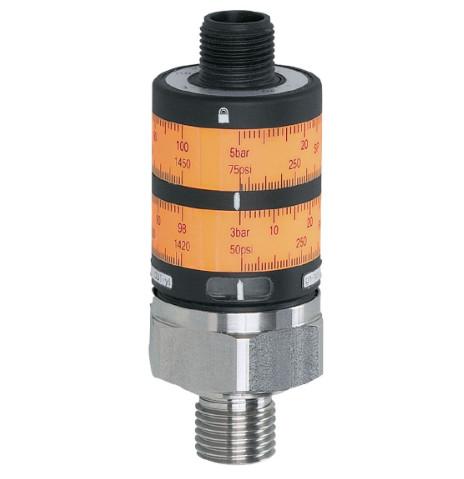

IFM PK6524 Pressure switch with intuitive switch point setting PK-010-RFG14-HCPKG/US/ /W in stock

• Simple switch point setting by means of two setting rings allowing optimum reading
• High long-term stability thanks to robust stainless steel measuring cell with high permissible pressure rating
• Mechanical locking prevents inadvertent switch point manipulation
• Lifespan of more than 50 million pressure cycles
• For use in hydraulics, pneumatics, air-conditioning and refrigeration
•

• Product characteristics

  Number of inputs and outputs	Number of digital outputs: 2
  Measuring range	0...10 bar 0...145 psi
  Process connection	threaded connection G 1/4 external thread internal thread:M5

  Application

  Application	for industrial applications
  Media	liquids and gases
  Medium temperature[°C]	-25...80
  Min. bursting pressure	300 bar 4350 psi 30 MPa
  Pressure rating	25 bar 362 psi 2.5 MPa
  Type of pressure	relative pressure
  MAWP (for applications according to CRN)	25 bar 362 psi

  Electrical data

  Operating voltage[V]	9.6...32 DC
  Current consumption[mA]	< 25
  Min. insulation resistance[MΩ]	100; (500 V DC)
  Protection class	III
  Reverse polarity protection	yes

  Inputs / outputs

  Number of inputs and outputs

  Number of digital outputs: 2

  Outputs

  Total number of outputs	2
  Output signal	switching signal
  Electrical design	PNP
  Number of digital outputs	2
  Output function	complementary
  Max. voltage drop switching output DC[V]	2
  Permanent current rating of switching output DC[mA]	500
  Switching frequency DC[Hz]	100
  Short-circuit protection	yes
  Type of short-circuit protection	pulsed
  Overload protection	yes

  Measuring/setting range

  Measuring range	0...10 bar 0...145 psi
  Set point SP	0.5...10 bar 7.5...145 psi
  Reset point rP	0.3...9.8 bar 5...142 psi

  Accuracy / deviations

  Switch point accuracy[% of the final value]	< ± 2,5; (Setting accuracy)
  Repeatability[% of the final value]	< ± 0,5; (with temperature fluctuations < 10 K)
  Characteristics deviation[% of the final value]	< ± 1,5 (BFSL) / < ± 2,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
  Temperature drift per 10 K	< ± 0.5

  Software / programming

  Adjustment of the switch point

  setting rings

  Operating conditions

  Ambient temperature[°C]	-25...80
  Storage temperature[°C]	-40...100
  Protection	IP 67
