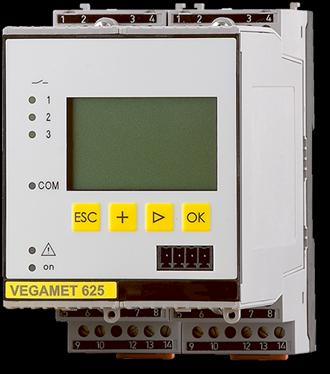

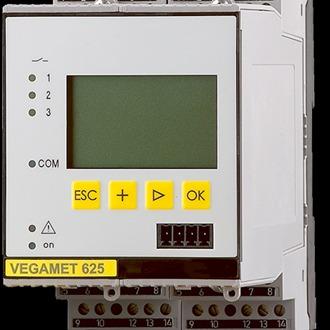

MET625.XXX VEGAMET 625 Calculation and display instruments for level sensors
MET625.XXX VEGAMET 625 Calculation and display instruments for level sensors
MET625.XXX VEGAMET 625 Calculation and display instruments for level sensors
MET625.XXX VEGAMET 625 Calculation and display instruments for level sensors
MET625.XXX VEGAMET 625 Calculation and display instruments for level sensors
MET625.XXX VEGAMET 625 Calculation and display instruments for level sensors
Specifications
Brand Name :
VEGA
Model Number :
MET625.XXX
Certification :
Rohs
Place of Origin :
DE
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50pcs/month
Delivery Time :
On request
Packaging Details :
Original packing
Sensor Length :
0.5m ... 22m (1.6ft ... 72ft)
Resolution :
0.1
Input :
1-channel transmitter
Electrical Connection :
Gland M20, IP66/68 NEMA4X/6P
Sensor Adaption :
Fixed cable; crimp sleeves
Digital Communication :
HART
Process Connection :
Clamp ISO2852 1-1/2
Platinum :
up to 0.025%
Design :
pH/ORP-field housing made of PC/ABS
Standard :
0 to 20 mg/l HOCl
Ambient Temperature :
-40 °C...+70 °C
Accuracy :
+/- 0.5%
Net Weight :
8.3kg
Description

MET625.XXX VEGAMET 625 Calculation and display instruments for level sensors

Application area

The VEGAMET 625 controller powers the connected HART sensor, processes and displays the measured values received through HART Multidrop. The VEGAMET 625 is ideal for simple control tasks in level, gauge and process pressure measurements. For inventory management in remote storage silos, interfaces for simple remote data transmission are integrated. Comprehensive adjustment functions enable individual adaptations to the respective application.

Your benefit

  • Simple data recording and history retrieval from instruments with digital interface
  • Simple integration into the Intranet/Extranet through integrated Web server
  • Versatile use through three scalable current outputs for control of indications and connected systems such as e.g. a PLC
  • Technical specifications
    Protection rating
    • IP20/IP30
    Input
    • 2 x HART sensor input
    Output
    • 1 x fail safe relay
    • 1 x Ethernet or 1 x RS232
    • 3 x operating relay
    • 3 x 0/4 … 20 mA current output
    Ambient temperature
    • -20 ... 60 °C
    Measured value memory
    • Internally
    Vega SWING63.DAGAVXUR (L=540mm) 5
    E+H FMU41-ARP2A2 3
    Vega SN62.XXBGHACKX 2
    Vega SN62.XXBGHAMKX 5
    Vega FX81.ACADMFHXAMKX (L=12320mm, L1=100mm) 5
    Vega FX81.ACADFGHXVMKX (L=4400mm, L1=100mm) 2
    Vega FX81.ACLTBPHXDLKX (L=4400mm) 2
    Vega MET625.XXX 5

    MET625.XXX VEGAMET 625 Calculation and display instruments for level sensors
