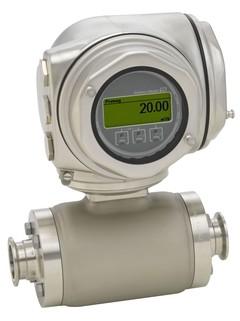

5H3B65-AAILAAAAAAFDAS0BA1 Proline Promag H 300 electromagnetic flowmeter

Specs at a glance

• Max. measurement error

  Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
  Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

• Measuring range

  0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min)

• Medium temperature range

  –20 to +150 °C (–4 to +302 °F)

• Max. process pressure

  PN 40, Class 150, 20K

• Wetted materials

  Liner: PFA
  Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
  Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
  Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
  Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

  Field of application

  Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its compact transmitter Promag H 300 offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Dedicated to demanding applications in the food and beverage as well as in life sciences industries


  Device properties

  • Liner made of PFA

  • Sensor housing made of stainless steel (3A, EHEDG)

  • Wetted materials CIP, SIP cleanable

  • Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os

  • Backlit display with touch control and WLAN access

  • Remote display available

  •
