Endress Hauser Proline Promag 55S Flow Meter 55S5H-UCJB1AC2AGAA
Endress Hauser Proline Promag 55S Flow Meter 55S5H-UCJB1AC2AGAA
Specifications
Brand Name :
Endress Hauser
Model Number :
55S5H-UCJB1AC2AGAA
Certification :
Rohs
Place of Origin :
DE
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50pcs/month
Delivery Time :
On request
Packaging Details :
Original packing
Mass flow (liquid) :
±0.10 % (standard), 0.05 % (option)
Volume flow (liquid) :
±0.10 %
Mass flow (gas) :
±0.25 %
Measuring range :
0 to 2 200 000 kg/h (0 to 80 840 lb/min)
Max. process pressure :
PN 100, Class 600, 63K
Measuring tube :
1.4539 (904L)
Customs Tariff No. :
90261021
Description

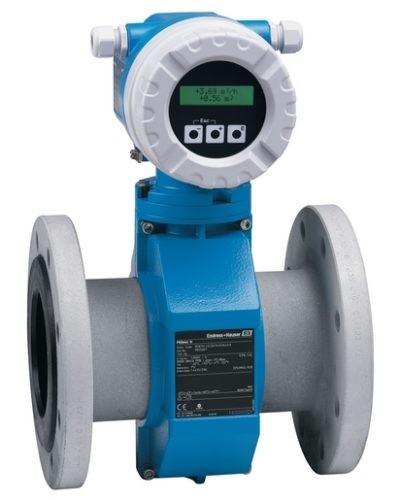

Proline Promag 55S Electromagnetic Flow Measuring System

Flow rate measurement of liquids with solids content or inhomogeneous liquids

55S5H-UCJB1AC2AGAA

Promag 55S5H, DN500 20"
Manufacturer: Endress+Hauser
Customs Tariff No.: 90261021
Application Electromagnetic flowmeter for bidirectional measurement of liquids with a minimum conductivity of  5 μS/cm – in particular fluids with solids, and fluids which are abrasive, inhomogeneous or tend to build-up, for example: • Chemical/mechanical pulps, paper pulp or wood pulp with solids contents up to 15 Vol.-% • Fruit mashes, fruit concentrates and final products (salad dressings, soups with vegetable pieces) • Slurries containing high amounts of sand or stone with an abrasive effect, e.g. ore slurry or mortar • Chemically inhomogeneous fluids (e.g. additives) • Thick wastewater sludges •
Flow measurement up to 9600 m /h (42267 gal/min) •
Can be used up to +180 °C (+356 °F) and max. 40 bar (580 psi) • Fitting lengths as per DVGW/ISO Application-specific linings and electrodes: • Natural rubber, hard rubber, polyurethane, PTFE or PFA linings • Flat, bullet nose, neck, bow or brush electrodes
Approvals for hazardous area: • ATEX, FM, CSA Connection to process control system: • HART, PROFIBUS DP/PA, FOUNDATION Fieldbus
The flow measuring system consists of the following components:
• Promag 55 transmitter
• Promag S sensor (DN 15 to 600 / ½ to 24") Two versions are available:
• Compact version: Transmitter and sensor form a single mechanical unit.
• Remote version: Transmitter and sensor are installed separately.
