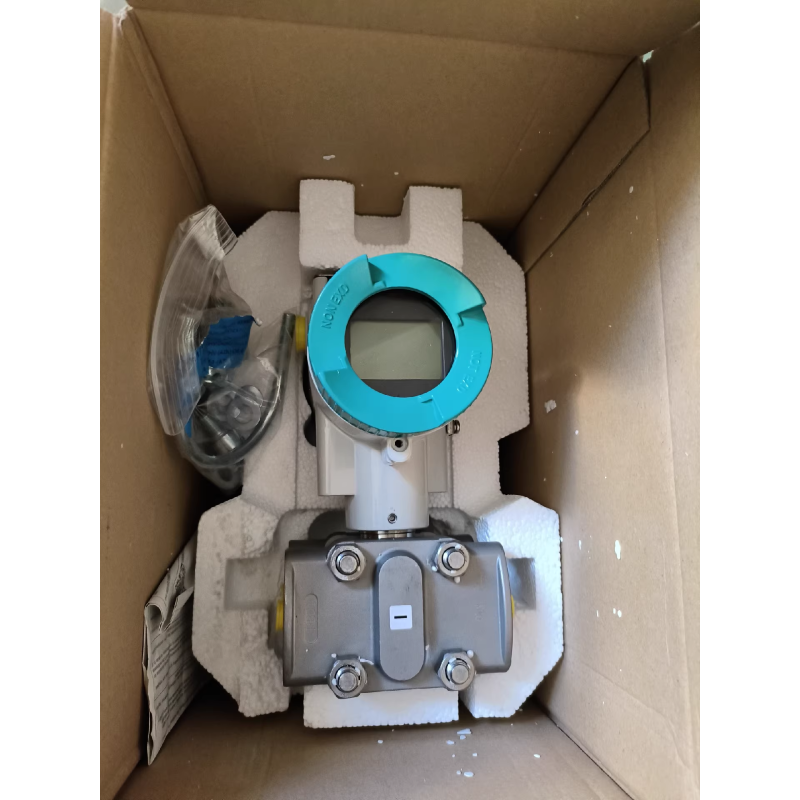

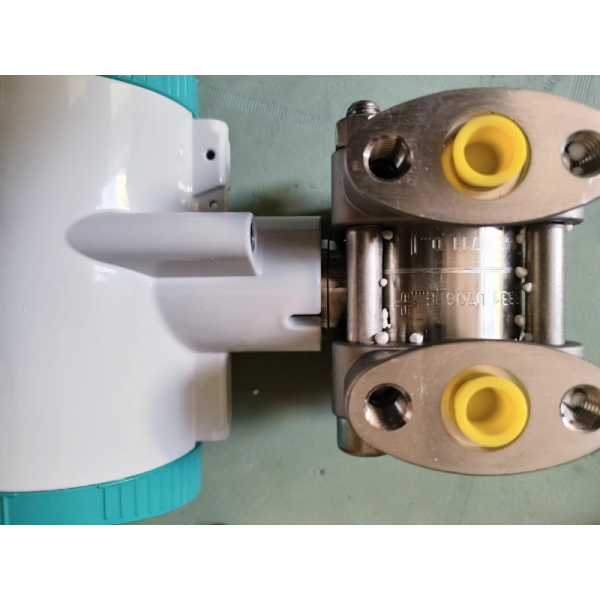

Siemens 7MF0330-1LR01-5MF2-Z Pressure Transmitter

SITRANS P320 Pressure transmitter Absolute pressure (with differential pressure measuring cell) HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 1300 mbar (522 inH²O) Oval flange, fastening thread: M10 (DIN 19213) Process connection: Stainless steel 316L/1.4404, Seal diaphragms: Stainless steel 316L/1.4404, Sensor differential pressure: Process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device Intrinsic safety, Dust ignition proof zone 20/21/22 (DIP), increased safety zone 2 2 x M20 x 1.5 With display (lid with glass window) Cable gland and sealing plug attached, metal Labeling type plate German - bar Quality inspection certificate - 5 point factory calibration (IEC 60770-2) Factory certificate (EN 10204-2.2) - wetted parts ATEX (Europe) Mounting bracket, electrogalvanised steel Measuring range setting: Lower range value (max. 5 characters), Upper range value (max. 5 characters), Unit (mbar, bar, kPa, MPa, psi, ...) Example: -0.5 ... 10.5 psi (stainless steel plate) Display: (pressure. % of range). pressure reference (none. absolute. gauge). example: pressure gauge

• Estimated Lead Time : 10 - 12 Weeks

• Manufacturer : Siemens

• Part Number : 7MF0330-1LR01-5MF2-Z A00+B11+C11+E20+H01+Y01+Y21

• SITRANS P320 Pressure Measurement

• SITRANS P320 : 7MF 0 3 3 = Pressure transmitters for absolute pressure (differential pressure series)

• Communication : 0 = HART, 4 ... 20 mA

• Measuring cell filling : 1 = Silicone oil

• Maximum measuring span : L = 1 300 mbar a (522 inH2O a)

• Process connection : R = Oval flange, mounting thread: M10 (DIN 19213)

• Wetted parts materials: Process connection, seal diaphragm : 0 = Stainless steel 316L/1.4404, stainless steel 316L/1.4404

• Non-wetted parts materials : 1 = Die-cast aluminum

• Enclosure : 5 = Dual chamber device

• Type of protection : M = Dust protection by enclosure Zone 20/21/22 (DIP), increased safety Zone 2

• Electrical connections/cable entries : F = Thread for cable gland: 2 x M20 x 1.5

• Local operation/display : 2 = With display (cover with glass pane)

• Options : -Z = A00+B11+C11+E20+H01+Y01+Y21

  • Cable glands included : A00 = Plastic

  • Nameplate labeling : B11 = German (bar)

  • Certificates : C11 = Quality test certificate, 5-point factory calibration (IEC 60770-2)

  • Explosion protection approvals : E20 = ATEX (Europe)

  • Mounting bracket : H01 = Steel, galvanized

  • Measuring span : Y01 = 1 300 mbar a (522 inH2O a)

  • Local display : Y21 = pressure absolute

• Weight : 2,775 Kg

• Shipping Weight : 4 Kg

•
