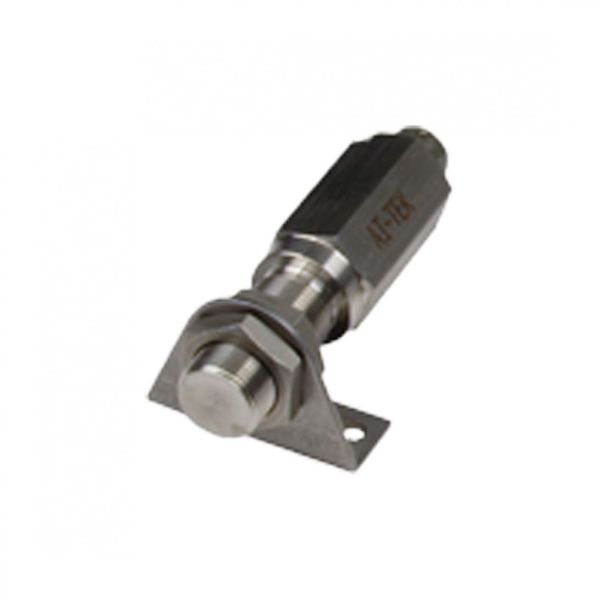

AI-Tek BH1512-005 BH Series Bi-Directional Sensor with Self-Calibrating Hall Effect and Wide Temperature Range
AI-Tek BH1512-005 BH Series Bi-Directional Sensor with Self-Calibrating Hall Effect and Wide Temperature Range
AI-Tek BH1512-005 BH Series Bi-Directional Sensor with Self-Calibrating Hall Effect and Wide Temperature Range
AI-Tek BH1512-005 BH Series Bi-Directional Sensor with Self-Calibrating Hall Effect and Wide Temperature Range
AI-Tek BH1512-005 BH Series Bi-Directional Sensor with Self-Calibrating Hall Effect and Wide Temperature Range
AI-Tek BH1512-005 BH Series Bi-Directional Sensor with Self-Calibrating Hall Effect and Wide Temperature Range
Specifications
Brand Name :
AI-Tek
Model Number :
BH1512-005
Certification :
ce
Place of Origin :
USA
MOQ :
1PC
Price :
inquiry
Payment Terms :
T/T
Supply Ability :
500+pcs+on stock
Delivery Time :
Negotiable
Packaging Details :
CARTON
Origin :
USA
Condition :
New & Original in Factory Packing
Powersupply :
12 to 40VDC
Temperature Sensor Range :
-40 to 700°F (-40 to 427°C)
Input Protection :
Internally fused, non-replaceable
Approval :
Non-hazardous area + UKCA marking
Charge Time :
3 to 5 hours
Reference Accuracy :
Standard
Rangedown :
Up to 150.1
Description
AI-Tek Instruments BH1512-005 BH Series Bi-Directional Sensor
The BH Series from AI-Tek are bi-directional, zero velocity sensors that are self-calibrating to specific customer applications. These sensors provide two independent frequency outputs and a direction signal output to indicate changes in rotation direction of the sensed ferrous target.
Dual-Channel Sensing Technology
The BH Series bi-directional sensor utilizes two Hall effect sensing elements that are physically offset from each other. Each element generates a single channel of target information, identical in frequency and polarity, but offset in the time domain (phase shifted).
Operation Principle
Special circuits inside the sensor calibrate each channel to its application target, then analyze the two channels of information for phase lead/lag conditions. The direction output provides a logic 1 level for clockwise or logic 0 for counterclockwise rotation, assuming proper sensor orientation.
For applications with cable runs exceeding 500 feet, a Digital Signal Distance Amplifier (DSDA) is required.
Key Features & Specifications
  • High temperature range: -40°C to +125°C
  • Supply Tracking or TTL Compatible output options
  • Power on calibration
  • Requires special alignment
  • Controlled duty cycle
  • Fine pitch performance
  • Increased air gaps
  • Wide supply voltage range: 10-28 Vdc in single design
  • Special circuitry provides high level of EMI hardness
  • Reverse voltage protection up to -30 Vdc to prevent damage if miswired
  • Rugged sensors designed to meet Navy ship-board standards and European Railroad Applications
Suitable for 32 diametral pitch or coarser gear (target), the standard catalog sensors are easily applied to various sensing needs. For unique requirements not met by standard options, we will review your specifications and work with you on custom sensor design.
It is the customer's responsibility to determine whether the product is proper for customer's use and application.
