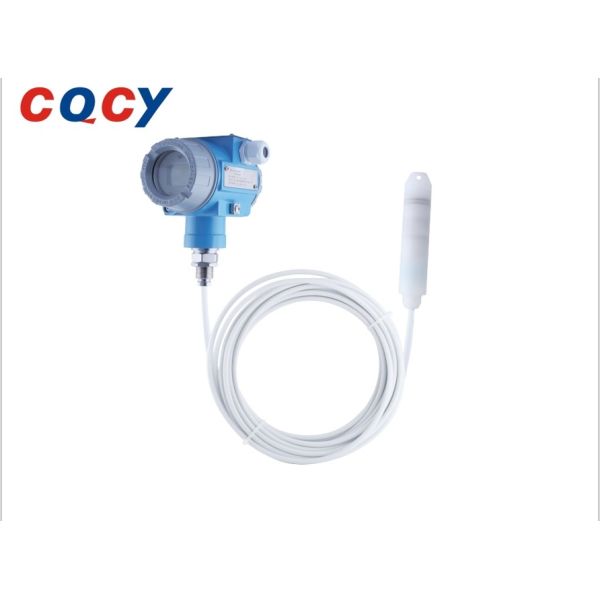

CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
Specifications
Brand Name :
CQCY
Model Number :
CYW71C Anti-corrosion type input Liquid level transmitter
Certification :
CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI
Place of Origin :
Shanghai, China
MOQ :
1set
Price :
USD+50 dollars to 1000 dollars+1set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+1set+per day
Delivery Time :
10-30 work days
Packaging Details :
Carton packing
1.Range :
0~20~200kPa
2.Out put :
4~20mA、4~20mA HART、RS485
3.Power supply :
9~28VDC、13~28VDC、15~28VDC、15~24VDC
4.Accuracy :
0.5%FS
5.Measurement medium: :
Fluid compatible with the contact material
6.Medium temperature: :
-40~60℃
7.Explosion-proof type :
Burst proof Ex db IIC T6 Gb blow proof dust Ex tb IIIC T80℃ Db intrinsically safe Ex ia IC T6 Ga (only 4 ~ 20 mA output) dust intrinsically safe Ex iaD 20 T80℃ (only 4 ~ 20 mA output only) Note: intrinsically safe must be supplied through the safety grid o
8.Stability energy :
Si 0.2% FS / year
Description

CYW71C Series of liquid level transmitter products use the 0EM pressure sensor with ceramic piezoresistivity as the signal measurement element, and through the computer automatic test, using the laser resistance control process for the wide temperature range of zero and sensitivity temperature compensation. The probe shell is made of PVDF anti-corrosion material, the sealing ring is made of fluorine glue, and the transmission cable is made of tetrafluoride material, which has excellent anti-corrosion performance.CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
