Indoor Single Phase Potential Transformer Suppliers Metallic Coating Touch Proof Type
Indoor Single Phase Potential Transformer Suppliers Metallic Coating Touch Proof Type
Specifications
Brand Name :
Chuangyin
Model Number :
JDZX13-12/24/36PC
Certification :
Test Report
Place of Origin :
ShenZhen
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
36,000,00pcs per year
Delivery Time :
Within 7 days
Packaging Details :
Carton packing for one sets, one set including three piece with Components
Highest Voltage :
36kv
Type :
Epoxy Resin
Rated Frequency :
50/60HZ
Rated Voltage :
12/2436KV
Installation Site :
Indoor
Standsrd Compliant :
IEC 60044-2 IEC 61869-1&3
Description

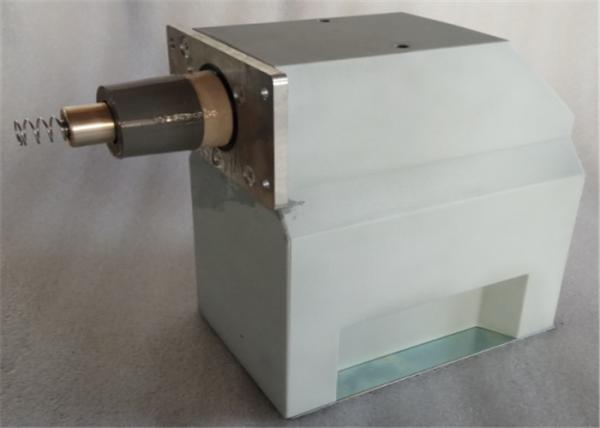

Indoor Single-Phase Single-Phase Metallic Coating Touch Proof Type MV Voltage Transformer

1. Introduction:

Voltage transformer is fully enclosed cast insulation structure, the primary and secondary winding, the toroidal core are all encapsulated in the epoxy resin casting body to improve the filterability and moisture resistance. The product plug part is designed to conform to the 2 # inner cone (EN 50181). The overall structure is designed to be fully shielded surface. It is used indoor for measuring voltage, electric energy and protective relaying in single-phase or three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 36kV.

2. Technical Data:

Installation site: Indoor
Rated frequency: 50/60Hz
Load power factor: cosΦ=0.8 (lagging)
Technical standard accords with: IEC 60044-2

IEC 61869-1&3

3. Specification:

Item Specification Unit Data
1 Um kV Up to 36
2 Rated Insulation Level kV Up to 36/70/170
3 Rated Primary Voltage V

33000/√3

22000/√3

11000/√3
4 Rated Secondary Voltage V 110/√3 or 110/3
Model

Rated Primary Voltage

(KV)

Rated Secondary Voltage

(KV)

 Accuracy Classes combination

Rated output

(VA)

Thermal Limiting Output

(VA)

BIL

(KV)
JDZX13-12/24/36PC

33/√3

22/√3

11/√3

 0.11/√3 0.2 25 300

12/28/75

24/50/125

36/70/170
0.5 50
1 80
0.11/√3/0.11/3 0.2/6P(3P) 25/50 150
0.5/6P(3P) 50/50

Note:Other specifications can be designed as customized.

Outline Drawing:unit/mm

Note: Other specifications can be designed as customized.

Outline drawing:
