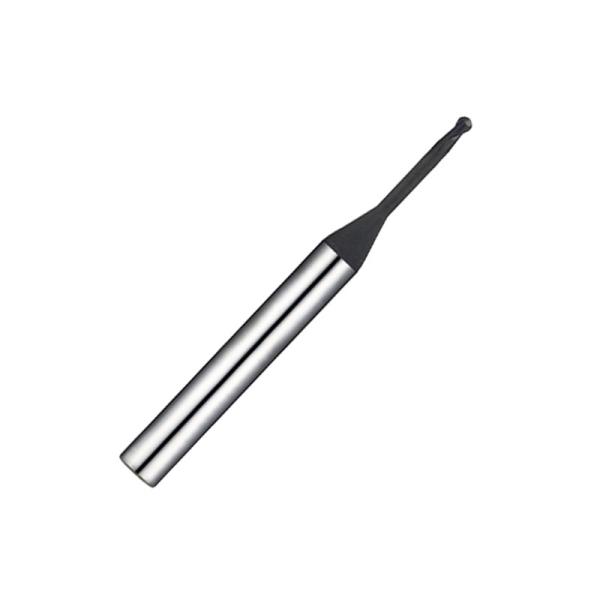

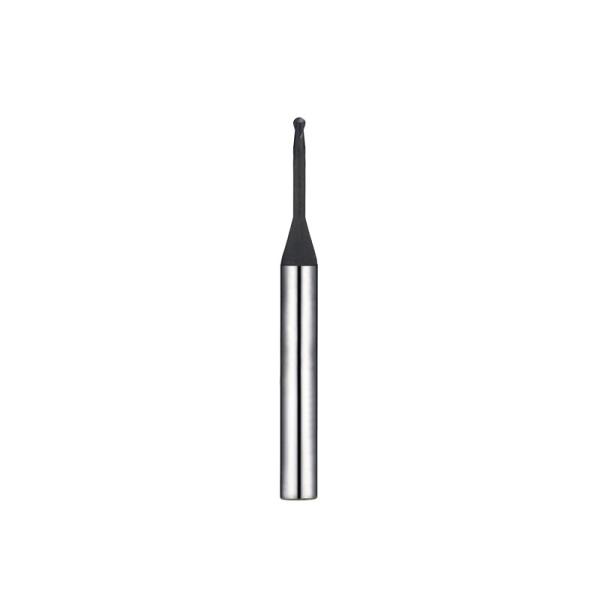

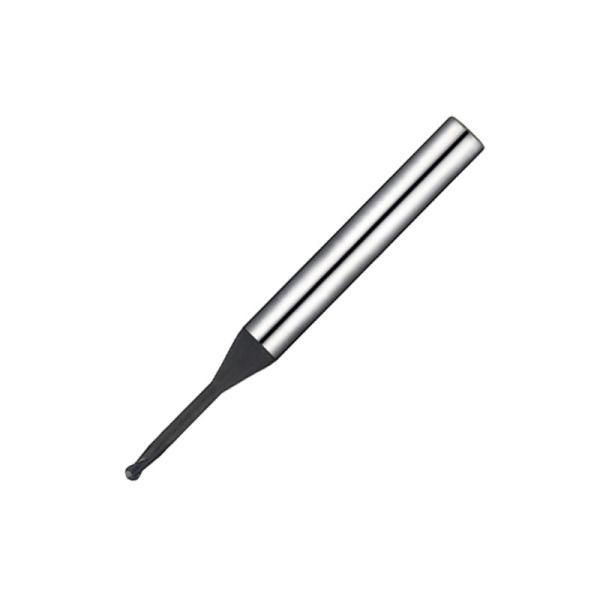

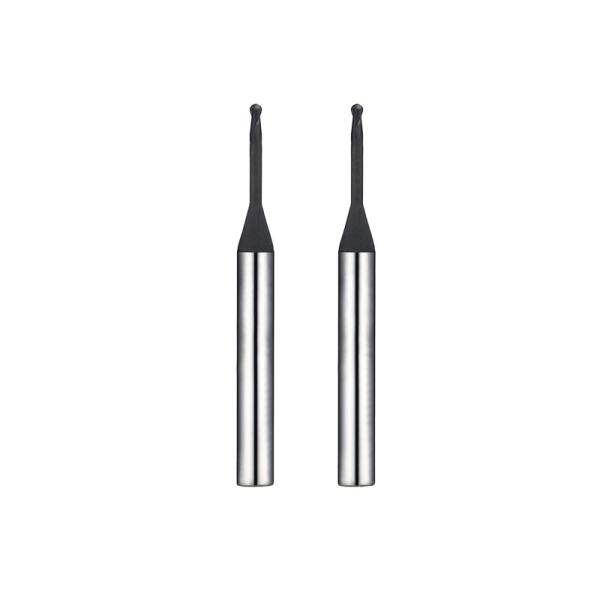

Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Ball Nose Solid Carbide Milling Cutter 2.5mm Micro Diameter
Specifications
Brand Name :
Inrover
Model Number :
XJSG
Place of Origin :
Shenzhen,China
MOQ :
5pcs
Price :
Please contact supplier
Packaging Details :
plastic tubes+ cartons
Delivery Time :
5-10 days
Supply Ability :
30000pcs/month
Material :
Carbide
Finish Type :
Diamond
Number of Flutes :
2
End Cut Type :
Center
Cut Type :
Center Cutting, Finishing
Certification :
ISO9001
Payment Terms :
T/T
Description

Solid Carbide Ball Nose Milling Cutter Steel 2.5mm Micro Diameter End Mill

Product Description:

Diamond Coating: The unique plasma chemical vapor deposition CVD coating technology, it has the same hardness and excellent collective bonding strength as natural diamond, which is suitable for the efficient processing of graphite materials. The tool surface hardness reach HV9000.
Material: Use ultramicron tungsten-carbide steel matrix,Perfect combination of toughness and hardness,Improve wear resistance while avoiding breakage and fracture
Equipment: Manufactured with five-axis precision grinding machine, Each milling bit is tested by tool testing instruments,Good stability of dimensional accuracy
Exclusive Design:9 μm CVD diamond coating offers increased tool life for non-ferrous alloys and composites, especially higher abrasive materials such as graphite, green carbide, and green ceramics

Technical Parameters:

Material Carbide
Finish Type Diamond

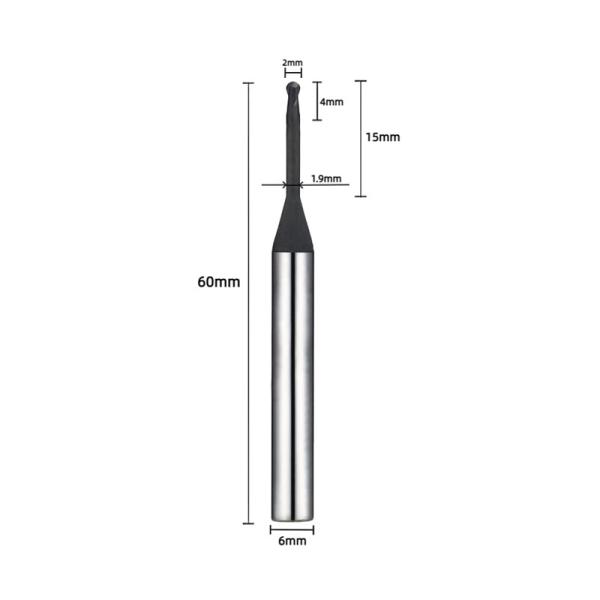

Size BALL 9um D2-15-60L D6 2F
End Cut Type Center
Cut Type Center Cutting, Finishing

Customization:

Client Need: Understand customer requirements and support customers in sending samples and drawings.
Evaluation Samples: Evaluate samples and requirements, communicate quotes.
Design Drawings: Designed according to the customer's requirements.
Confirmation of Samples: The sample department confirms the samples according to the design
Mass Production: Quality and quantity guaranteed, mass production.
Quality Inspection: Inspection, sampling layers of checking detection.
Inventory: Qualified products are warehoused.
Delivery on Time: Ship according to customer orders.
After-sales Service: Provide after-sales service to customers.

Support and Services:

We provide technical support and service for our Micro Diameter End Mill products.

We offer technical advice in the selection of our products, as well as troubleshooting and installation assistance if needed. Our customer service team is available to answer any questions or concerns you may have.

In addition, we provide free maintenance and replacement services. We also offer on-site maintenance and repair services, as well as online support services.

For more information about our technical support and service for Micro Diameter End Mill, please contact us.
