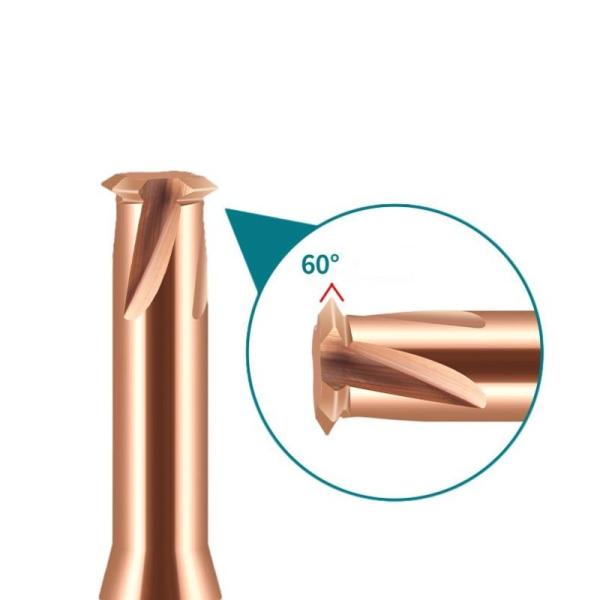

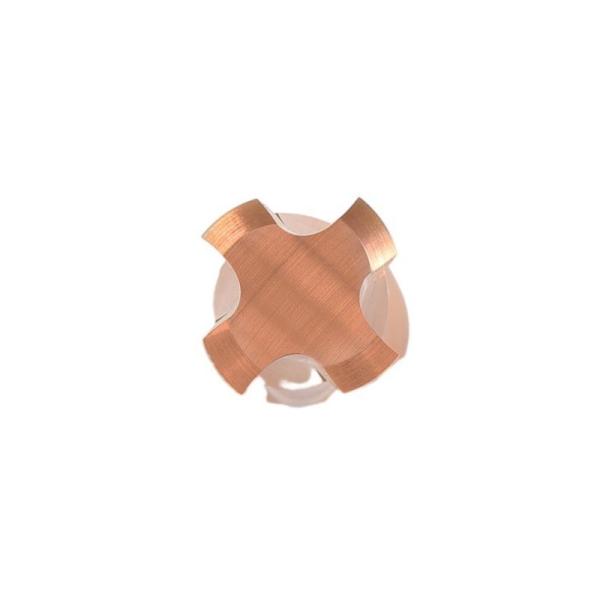

CNC Single Teeth Threading End Mill Solid Carbide 4 Flutes For Cast Steel
CNC Single Teeth Threading End Mill Solid Carbide 4 Flutes For Cast Steel
CNC Single Teeth Threading End Mill Solid Carbide 4 Flutes For Cast Steel
CNC Single Teeth Threading End Mill Solid Carbide 4 Flutes For Cast Steel
CNC Single Teeth Threading End Mill Solid Carbide 4 Flutes For Cast Steel
CNC Single Teeth Threading End Mill Solid Carbide 4 Flutes For Cast Steel
CNC Single Teeth Threading End Mill Solid Carbide 4 Flutes For Cast Steel
CNC Single Teeth Threading End Mill Solid Carbide 4 Flutes For Cast Steel
Specifications
Material :
Solid Carbide
overall_length :
50~100mm
flute_diameter :
0.55~16mm
Angle :
60°
Coating :
Nano Coating
number_of_flutes :
2~6
shank_diameter :
4~16mm
Place of Origin :
Shenzhen.China
Brand Name :
Inrover
Certification :
ISO9001
MOQ :
5pcs
Price :
Please contact supplier
Packaging Details :
plastic box+cartons
Delivery Time :
7-10 days
Payment Terms :
T/T
Supply Ability :
30000/Month
Description

CNC Single Teeth Solid Carbide 4 Flutes Threading End Mill For Cast Steel

Product Description:

CNC Single Teeth Threading End Mill Solid Carbide 4 Flutes For Cast Steel

Size Flute Dia(d1) Relief Dia(d2) Relief Length(L1) Shank(D) Overall Length(L) Flute(F)
M0.8*0.2 0.55 0.32 1.5 4.0 50 2
M0.9*0.225
 0.625 0.35 1.8 4.0 50 2
M1.0*0.25
 0.72 0.43 2.5 4.0 50 2
M1.2*0.25
 0.9 0.63 3.2 4.0 50 2
M1.4*0.3
 1.05 0.7 3.5 4.0 50 3
M1.6*0.35
 1.2 0.8 4.0 4.0 50 3
M2.0*0.4
 1.55 0.9 6.0 4.0 50 3
M2.5*0.45
 1.96 1.3 6.5 4.0 50 4
M3.0*0.5
 2.35 1.6 8.0 4.0 50 4
M4.0*0.7
 3.15 2.1 10 4.0 50 4
M5.0*0.8
 3.9 2.8 12 4.0 50 4
M6.0*1.0
 4.8 3.4 15 6.0 50 4
M8.0*1.25
 6.0 4.2 20 6.0 60 4
M10*1.5
 7.7 5.6 25 8.0 60 4
M12*1.75
 9.6 7.3 30 10 75 4
M14*2.0
 10 7.3 36 10 75 4
M18*2.5
 12 8.8 38 12 75 4
M24*3.0
 14 10.2 48 14 100 6
M30*3.5
 16 11.5 50 16 100 6

Technical Parameters:

Attribute Parameters
Threading Milling Cutter Three Teeth Thread Mill
Shank Diameter 4~16mm
Coating Nano Coating
Number of Flutes 2~6
Flute Diameter 0.55~16mm
Angle 60°
Overall Length 50~100mm
Material Solid Carbide
