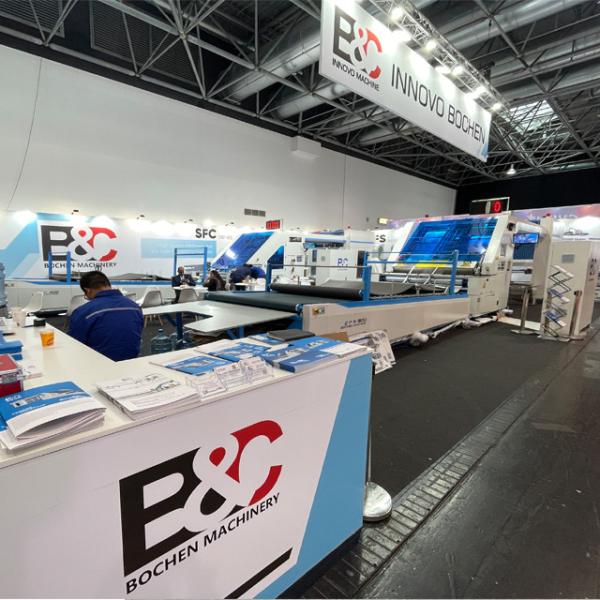

High Speed Servo Model Laminating Corrugated Cardboard Carton Box Flute Flute Laminator Machine
High Speed Servo Model Laminating Corrugated Cardboard Carton Box Flute Flute Laminator Machine
Specifications
Brand Name :
INNOVO
Model Number :
SFC1900
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 25000-35000 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 Set Month
Delivery Time :
45-60 work days
Packaging Details :
Container
Power :
Electricity and gas
Adust :
intelligent
Point :
5 ply
Model :
1900
Description

High Speed Servo Model Laminating Corrugated Cardboard Carton Box Flute Flute Laminator Machine

Performance characteristics

1. This machine can laminate combination of two corrugated boards and any type of top sheet together. It can produce two -layer board (cardboard +cardboard), 3ply.4phy, 5phy, 7ply and other products.


2. Laminating type:corrugated + corrugated + cardboard, corrugated + corrugated,corrugated + cardboard, cardboard + cardboard, cardboard + gray board + cardboard, etc.


3. Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.


4. The bottom paper feeding part use lead edge feeding system.


5. The multifunctional rack of the bottom paper are suitable for curved corrugated.

Specifications

Model SFC1900
Max paper 1900*1900mm
Min paper 500*500mm
Top sheet thickness 150-800 g/m2
Bottom sheet thickness 10mm
Working speed 200m/min
Accuracy 0.8mm
Total power 22kw
Dimension 15700*3100*2520mm
Machine weight 9600kg

6. Large stainless steel glue roller(160mm) with fine anilox grinding to guarantee even glue coating even at min glue quantity.


7. Automatic lubrication pump for all main bearing ensure machine strong endurance even under heavy duty working condition.


8. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.


9. Special polyethylene materials on the surface of the coating roller and pressure roller, glue is automatically dropped off, free scrubbing.


10. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.


11. One -click adjustment of the whole machine (just enter the paper size).


12. Video monitoring.
