High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
Specifications
Brand Name :
Innovo Bochen
Model Number :
SFC-1500/1700/1900
Certification :
CE
Place of Origin :
Anhui
MOQ :
1 Set
Price :
65000-85000USD
Supply Ability :
30 Sets per month
Delivery Time :
45 Days
Packaging Details :
Vacuum bag
Driving type :
Electrical driving
Down paper thickness Thickness :
400gsm-10mm Cardboard and FLUTE
Line Working Speed(m/min) :
150-160
Fob term price :
70000-85000USD
Minimum Sheet Size :
1500: 40*45cm 1700: 45*45cm
Lamination Type :
cardboard+corrugator+cardboard
Max material Size :
1500*1500mm and 1700*1700mm
Glue Roller Size :
Anilox roller 160mm diameter
Adjustment :
One key adjust
Description
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
Performance Characteristics
  • Laminates combinations of two corrugated boards and any top sheet to produce 2-layer, 3ply, 4ply, 5ply, 7ply products
  • Handles various laminating types: corrugated + corrugated + cardboard, corrugated + cardboard, cardboard + gray board + cardboard, etc.
  • Automatic paper detection with servo correction technology for precise top-bottom paper alignment
  • Imported servo motor control system with Japan NITTA suction belt and lead edge feeding
  • Multifunctional rack accommodates curved corrugated materials
  • 160mm stainless steel glue roller with fine anilox grinding for even coating
  • Dual-use lifting platform with pre-stacker structure
  • Polyethylene-coated rollers for automatic glue release
  • Circulating glue system reduces waste and stabilizes adhesion
  • One-touch machine adjustment via paper size input
  • Integrated video monitoring system
Technical Specifications
Model SFC-1500 SFC-1700 SFC-1900 SFC-2200
Max size 1500×1500mm 1700×1700mm 1900×1900mm 2200×2100mm
Min size 440*400mm 440×400mm 450×450mm 500×500mm
Top Paper 120-800g
Bottom paper 400gsm-10mm Corrugated board and cardboard
Max speed 160m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1-2.5mm
Structural Features
  • Advanced transmission control system with automatic paper size adjustment
  • Computerized high-speed fitting (up to 12,000 pieces/hour)
  • Chuanliu-type air supply head with multiple nozzle sets
  • Feida Block system for low stack cardboard handling
  • Multiple electric eyes for precise paper alignment
  • Full-function electronic control with HMI and PLC monitoring
  • Automatic glue replenishment with recycling system
Key Components
1. Bottom Paper Feeding
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types

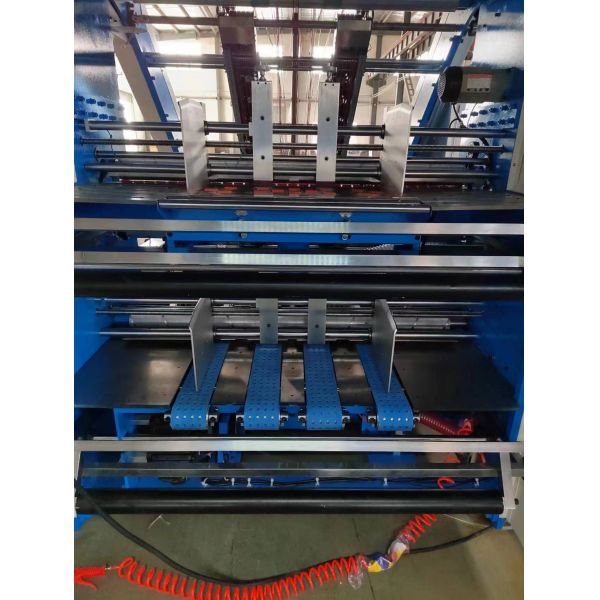

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.

2. Top Sheet Feeding Mechanism
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types

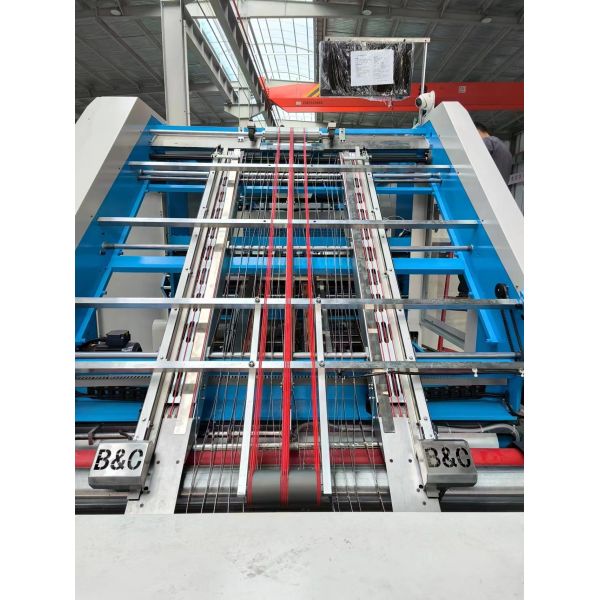

Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.

3. Electrical System
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types

CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.

4. Pre-Stack Part
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types

Pre-pile system with touch screen configuration for efficient setup and orientation.

5. Transmission System
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types

Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

6. Positioning System & Glue Roller
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types

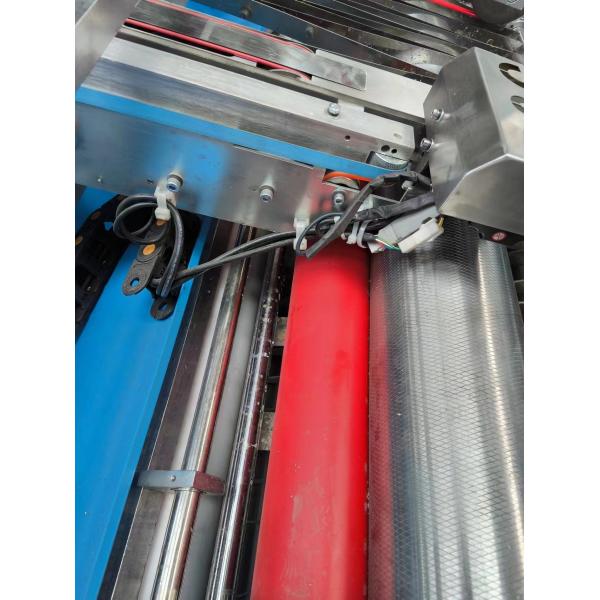

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.

7. Touch Screen Operation
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types

Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.

Optional Features
  • Leading Edge Feeding System (for large/thick sheets)
  • Shaftless Servo Feeder (for long top sheets)
  • Big Suction System (for multi-layer products)
  • Automatic Lubrication System (extends bearing life)
  • Video Monitoring System (remote operation monitoring)
High Speed Sheet To Sheet 5ply Flute Laminating Machine with Servo Control for Laminating of Multi Ply Corrugated Paper and Various Laminating Types
