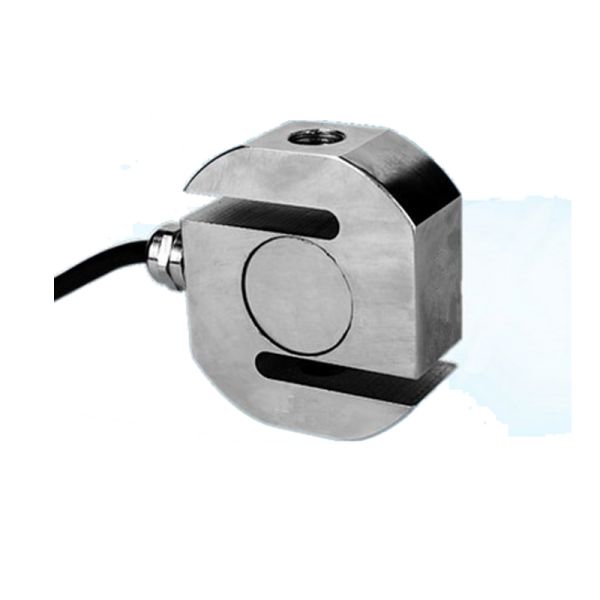

Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008
Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008
Specifications
Place of Origin :
China
Brand Name :
Innovation
Model Number :
IN-MS-008
MOQ :
1 pc
Price :
USD1-USD100
Payment Terms :
L/C, T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
7-15DAYS
Packaging Details :
CARTON
Description

Alloy Steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008

Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008
Load Cell Dimension:

Alloy steel Stainless Steel 100KG-20T Tension S Type Load Cell IN-MS-008

Load Cell Technical Parameter:

Capacity 100-20000KG Material Alloy steel
250lb-40klb Stainless Steel
Rated Output 2.0/3.0±10%mV/V Output Impedance
Zero Balance ±2%F.S. Insulation
Non-linearity 0.05%F.S. Recommended Excitation
Hysteresis 0.05%F.S. Maximum Excitation
Repeatability 0.05%F.S. Compensated Temp Range
(30)Creep (30min) 0.03%F.S. Operating Temp Range
Temp Effect on Output 0.03%F.S./10ºC Safe Load Limit
Temp Effect on Zero 0.03%F.S./10ºC Ultimate Load Limit
Input Impedance 385±10Ω Cable Size
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
