Autoclavable Laparoscopic Instruments Magnetic Sheet Trocar
Autoclavable Laparoscopic Instruments Magnetic Sheet Trocar
Specifications
Supply Ability :
500 pcs/month
Material :
Stainless Steel
Trad mark :
INNOVA
Model Number :
11-3
Weight :
Lightweight
MOQ :
1pcs
Delivery Time :
7work days after receive the payment
Needle type :
Pyramidal Autoshield
Payment Terms :
T/T
OEM/ODM :
Acceptable
length :
100mm
Price :
Usd75-95/pcs
Feature :
Reusable
Usage :
Minimally Invasive Surgery
Compatibility :
Standard Laparoscopic Ports
Certification :
ISO13485
Sterilization Method :
Autoclave Compatible
Place of Origin :
CHINA
Instrument Type :
Surgical Tools
Packaging Details :
Poly bag and special shockproof paper box.
Brand Name :
INNOVA
Cannula Type :
Un-threaded Threaded
Description

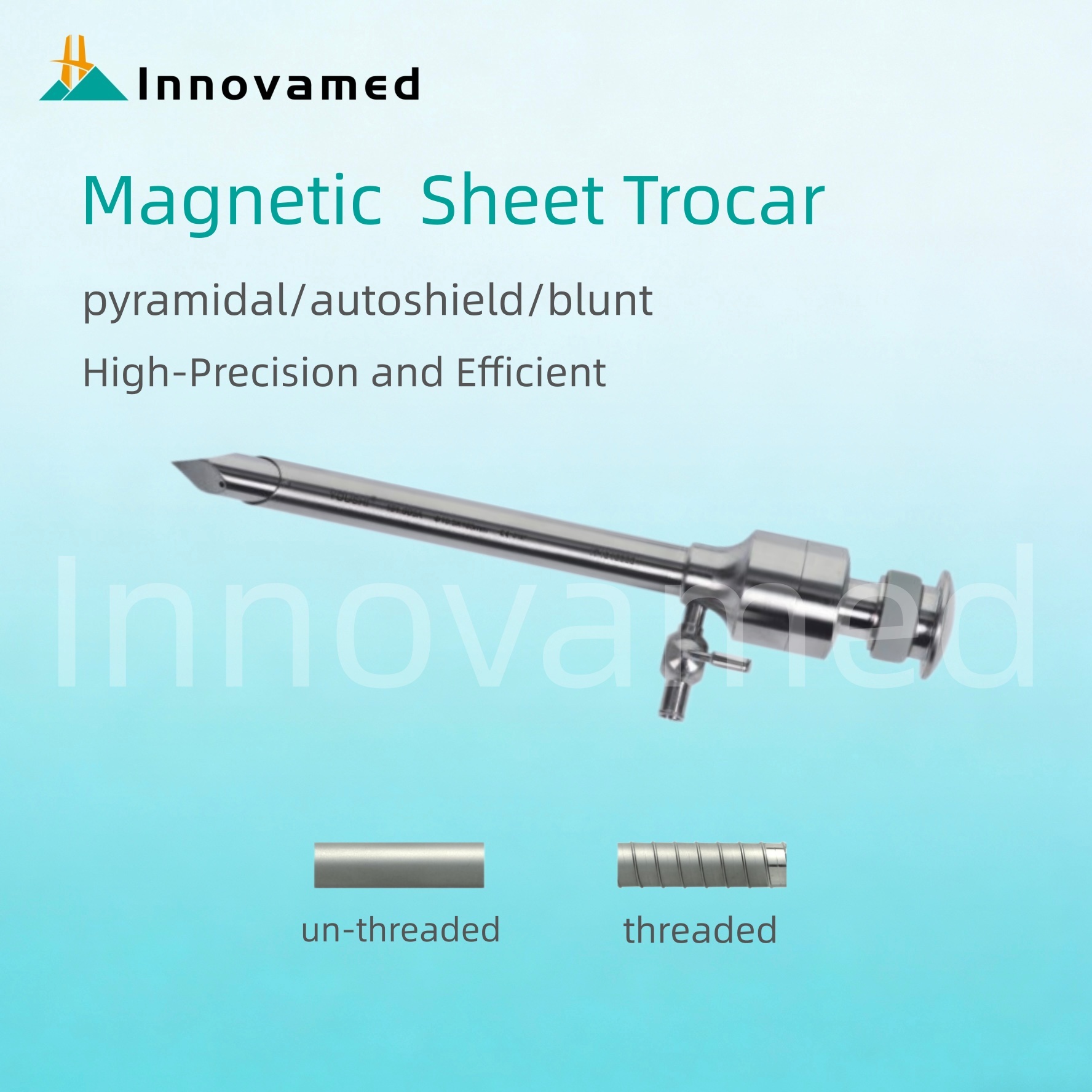

Autoclavable Laparoscopic Instruments Magnetic Sheet Trocar
Reusable Magnetic Laparoscopic Trocar with Precision Magnetic Sealing Valve
Key Performance & Features
  • Precision Magnetic Valve: Utilizes magnetic force to snap shut instantly upon instrument withdrawal, providing an ultra-reliable, leak-proof barrier that outperforms spring-loaded mechanisms.
  • High-Grade Medical Stainless Steel: Built for longevity, the cannula is resistant to corrosion and mechanical wear, ensuring a long service life in busy surgical departments.
  • Advanced Silicon Sealing: The top cap features a high-elasticity silicon seal that maintains pneumoperitoneum even when using instruments of varying diameters.
  • Modular & Autoclavable: The entire assembly is designed for easy disassembly, cleaning, and is fully 134°C Autoclavable, meeting the highest hospital sterilization standards.
  • Stability & Control: The weighted balance of the stainless steel body provides a "solid" feel during insertion, giving the surgeon excellent tactile feedback.
Main Applications
Used to create and maintain an access port for endoscopes and hand instruments during laparoscopic surgeries. Standard equipment for Cholecystectomy, Appendectomy, and Hernia repairs.
Instructions for Use
  1. Pre-Check: Ensure the magnetic valve opens and closes freely. Check that the silicon sealing gasket is properly seated and free of tears.
  2. Assembly: Insert the matching obturator (Pyramidal or Autoshield) into the cannula until it is fully engaged.
  3. Abdominal Entry: Following a skin incision, apply controlled pressure to insert the trocar into the abdominal cavity. The ergonomic housing allows for a secure palm grip.
  4. Valve Activation: Remove the obturator. The internal magnetic plate will automatically snap shut, preventing any loss of CO2 gas.
  5. Surgical Operation: Insert laparoscopic instruments through the blue silicon seal. The magnetic valve allows instruments to glide in and out with minimal resistance.
  6. Cleaning & Sterilization: After the procedure, disassemble the valve components to ensure thorough cleaning of the internal channels. Autoclave at 134°C before the next use.
Technical Summary
Seal Type: Magnetic Valve + Silicon Gasket
Material: Medical Stainless Steel
Sterilization: Steam Autoclave (Reusable)
Compatibility: Works with all standard 5.5mm, 10.5mm, and 12.5mm laparoscopic tools
Product Specifications
Pyramidal Autoshield Size
11-30501 11-30502 5.5*100mm
11-31001 11-31002 10.5*100mm
11-31201 11-31202 12.5*100mm
All products are manufactured to meet medical device standards and are suitable for repeated sterilization cycles.
