Thermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments
Thermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments
Thermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments
Thermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments
Thermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments
Thermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments
Specifications
Brand Name :
Surplus
Model Number :
PTFE HE-021
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T,
Supply Ability :
50 PC/Month
Delivery Time :
10-15 working days
Packaging Details :
Wooden Case or Carton Box
Name :
Thermoplastic Fluoroplastic Immersion Type Heat Exchanger In Corrosive Environments
Frame Material :
PTFE,PP,PVC,PVDF
Tube Material :
PFA,PTFE,FEP
Connections :
1/2" FNPT or others
Pressure :
30 PSI
Size :
can designed as requirements
Description

Thermoplastic Fluoroplastic Immersion Type Heat Exchanger In Corrosive Environments

Plastic immersion type heat exchangers are essential components in the surface finishing and chemical process industries
Excellent chemical compatibility and rugged design for your heating or cooling application.
Fluoroplastic heat exchangers:

We also deliver fluoroplastic heat exchangers. These heat exchangers are made of fluoroplastics such as PTFE, FEP an PFA. Fluoroplastics are fully resistant against corrosive liquids and have very good non-stick properties. This means there is no building up of pollution and it reduces fouling and scaling. Fluoroplastics are pure and contain no softeners or plasticisers and are therefore very suitable for handling ultra-high-pure (UHP) applications in the semi-conductor industry.

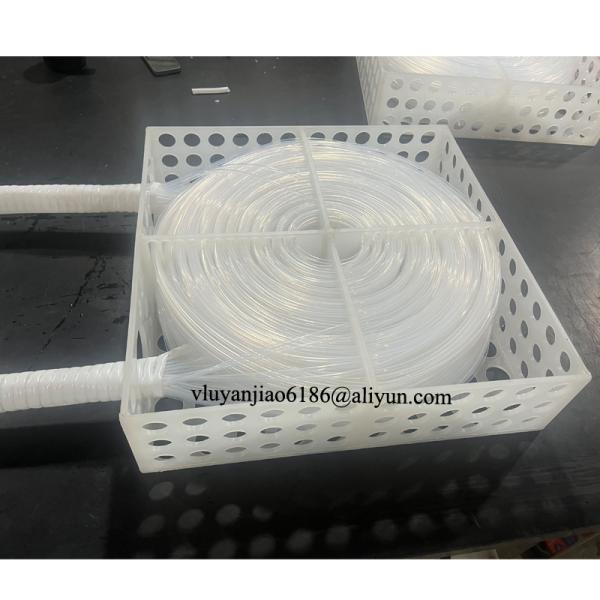

All types of fluoroplastic heat exchanger units feature a proven unique honeycomb structure. The tubes are integrated in the pipe sheet which provides a lightweight compact bundle design. This ensures a leak free flow of the process liquids. Teflon heat exchangers are almost maintenance free and have a very long lifetime.

Features & Values

All wetted parts of fluoropolymer(FEP,PFA or PTFE) construction with a heavy duty CPVC mounting bracket.

Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of 1/2 inch(13mm) tubing, smaller coils have 1/4 inch(7mm) tubing.

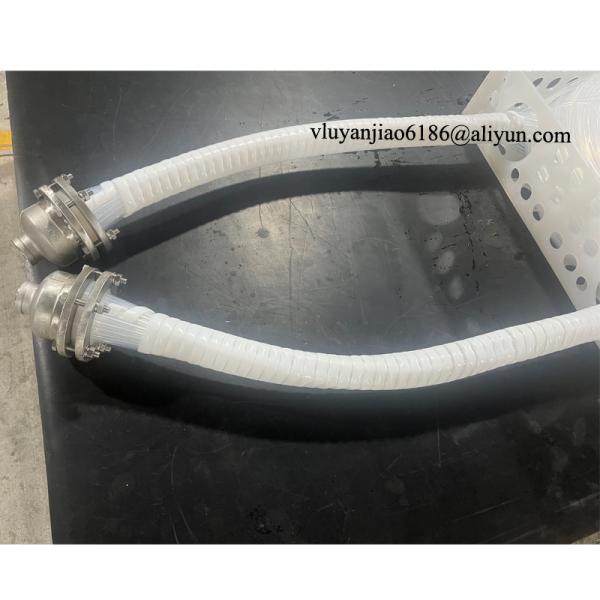

Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation.

Eliminates stray currents in the tank.


MODULAR TYPE
Module Design according to customers specification
Max Tube Diameter : 19mm
Various Connection Option
Efficient Baffle Design Minimizing Sludge Deposits
Industry: Steelmaking Industry, Smelting Industry

Industries

  • Semiconductor Fabrication
  • Solar Cell Manufacturing
  • Flat-Panel Display, LEDs & Electronics
  • Chemicals Manufacturing
  • Industrial Manufacturing

Others Applications

Acid Heating And Corrosive Chemical Heating

Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.

Acid Heating And Corrosive Chemical Heating(1)
3HX SeriesThermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments

HXT SERIES – SCREWPLUG

Thermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments

9HX SERIES

Thermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments

6HX SERIES

Thermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments

3HXOL SERIES Thermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments

HXSL SERIES

Thermoplastic Fluoroplastic Immersion Type PTFE Heat Exchanger In Corrosive Environments
