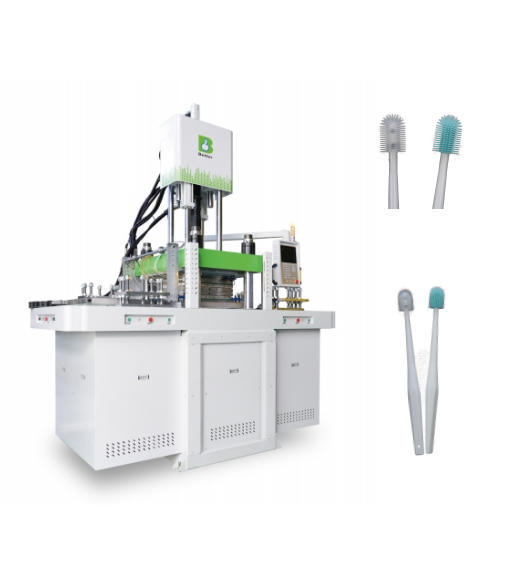

Liquid Silicone Rubber Ball-Tip Toothbrush Molding Equipment Silicone Rubber Feeding Equipment

Guangzhou S-guangyu Machinery Equipment Co., Ltd. Specialized in manufacturing equipment for liquid silicone rubber products. Established in 2010, the company boasts a core team with over 20 years of industry experience and has achieved annual sales growth exceeding 30%. Our scope encompasses: liquid silicone injection moulding machines, liquid silicone feeding systems, solid-to-liquid conversion equipment, automated part removal systems, and complete liquid silicone production suites. We provide comprehensive liquid silicone moulding solutions and automated production systems. Scale: The company employs 70 staff, comprising 43 production personnel, 12 sales representatives, 10 R&D & technical engineers, and 5 after-sales engineers.

Guangzhou S-guangyu Machinery Equipment Co., Ltd. is situated in Huangpu District, Guangzhou, China, serving as the company's product R&D centre and manufacturing base. Over the years, the Better brand has garnered significant market recognition and acclaim. S-guangyu continuously researches, develops, and innovates products and processes. It not only possesses numerous proprietary intellectual property projects but also maintains a consistent technological competitive edge within its field. The novel material processing and moulding equipment developed by S-guangyu remains at the forefront of industry technology to this day and is widely utilized by numerous large, well-known enterprises. Presently, S-guangyu not only supplies the market with a comprehensive range of metered mixing series products manufactured to exacting design, process, and quality standards but has also established a highly skilled and efficient technical service team.

theory

Liquid silicone injection moulding machines employ cold runner technology. After precisely blending the low-temperature liquid A and B components of silicone in the correct ratio, the mixture is pressurised by a screw and injected into the high-temperature mould cavity. Under the mould's heating action, a rapid chemical cross-linking reaction occurs, causing the material to cure and form. This achieves high-precision, high-efficiency automated production. The core principle lies in the chemical reaction sequence of ‘mixing-injection-heated vulcanisation’, differing fundamentally from traditional injection moulding machines that heat solid raw materials.

Working Principle Flow

1. Raw Material Delivery and Mixing:

Liquid silicone rubber typically comprises two components: A (containing a catalyst) and B (containing a cross-linking agent), stored separately in material barrels.

An automatic feeder or metering system conveys the A and B compounds in a fixed ratio to a static mixer.

Within the mixer, the A and B compounds are thoroughly blended, with additives such as colourants sometimes incorporated.

2.Injection Moulding:

The mixed liquid silicone is propelled by a screw through a non-return valve and switch nozzle into the cold runner system.

The cold runner system maintains the silicone at a low temperature to prevent premature curing within the runner.

The silicone is rapidly and uniformly injected into the preheated mould cavity.

3.High-Temperature Vulcanisation Moulding:

Within the mould, heated to high temperatures via a heating system, the A and B components of the liquid silicone undergo catalysis and initiate a rapid chemical cross-linking reaction, known as thermal curing.

This process rapidly solidifies the liquid silicone into elastic, stable silicone products.

4.Pressure Holding and Cooling:

During curing, constant pressure is maintained to ensure dimensional accuracy of the product.

After moulding, the mould cools and opens to remove the cured product.

5.Automation and Repeat Production:

The entire process operates as a cyclical automated sequence, minimising manual intervention and enhancing production efficiency.

Differences from Conventional Injection Moulding Machines

Raw Material State: Liquid silicone injection moulding machines utilise liquid raw materials, whereas conventional injection moulding machines employ solid raw materials.

Forming Method: Liquid silicone cures through a chemical cross-linking reaction, constituting a thermosetting moulding process; conventional injection moulding machines rely on cooling for solidification.

Temperature Control: Liquid silicone injection requires cold runner technology to maintain low temperatures while mould heating facilitates vulcanisation. Conventional injection moulding machines heat raw materials within the barrel and mould to melt and cool them into shape.
