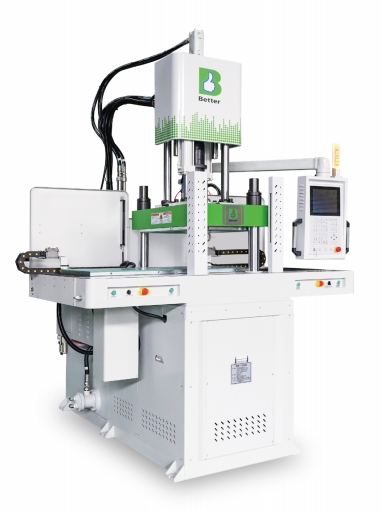

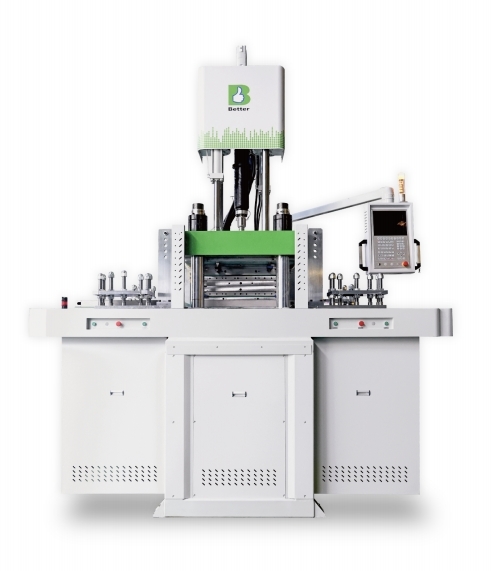

LSR Liquid Silicone Rubber Injection Molding Machine Liquid Silicone Safety Face Shield Injection Molding Machine Exported Overseas

Full System:

1. Manual /automatic injection

Precise injection molding and automatic accurate control of injection volume,injection speed,temperature and other mold assembly (convenient for mold dragging)devices.

2.MODERN PRODUCTION WORKSHOP

With the high-precision CNC processing equipment, it ensures the accuracy and appearance of process parts and improves the productivity.So the quality is stable and the products can be customized.

The workshop strictly executes the 6S management and modern management and it has an independent quality control system to ensure quality. Every process shows its originality.

3.OUR TERMINAL AIM

Our company considers the product quality as life of a enterprise. We are committed to building an advanced manufacturing platform; using a high-standard quality management system;improving continuously and pursuing higher product quality. Focus on quality first is our commitment and responsibility to customers.

FULL SYSTEM

A stable and economic production process largely depends on the quality of the process components. Equally important and often underestimated is the importance of coordination of the individual components to one another.

As a full system supplier, BETTER develops and manufactures all relevant elements for a LIM production cell in China in compliance with the strictest quality guidelines. Through years of experience BETTER is specialized in integrating its own product range with the appropriate injection molding machine and other automation components into a complete cell.

The customer specifies the part geometry and tolerances, the annual production volume and any further requirements. In a fixed-price offer BETTER presents the turnkey solution including all required components, as well as an extensive acceptance procedure and all necessary training.

This makes BETTER to your specialist and leading partner for high grade Turnkey Solutions for LSR (liquid silicone rubber) injection molding worldwide!

Characteristics

1) Compared with the solid rubber molding, the liquid silica gel injection molding does not need the operation procedures such as molding, mixing, pre molding, etc., which saves manpower, material resources and energy, reduces equipment investment and floor space.

2) The injection molding of liquid silica gel can realize the automatic processing under the fully closed condition, eliminate the manual operation deviation, reduce the influence and pollution of various variable factors in the processing, and ensure the dimensional accuracy and internal quality of the product, which is conducive to the application of liquid silica gel in medical treatment.

3) Because the viscosity of liquid silica gel is very low (generally in the range of 10-1000pas), and its fluidity and processability are good, its injection pressure is much lower than that of solid rubber and plastic. Generally, the injection pressure is 20MPa, which can be lower than 1MPa in some cases. Therefore, it can produce products without flash, reduce material waste, and reduce the wear of equipment and mold. In addition, due to the good fluidity of liquid silica gel, it is especially suitable for forming large-scale products, extremely complex shape products or ultra-thin products, such as ultra-thin products with a forming thickness of 0.5mm and a length of 100mm, which is difficult for solid rubber materials to form.

4) The curing rate of liquid silica gel is very fast. During injection molding, the curing reaction can be completed in the range of 160-220 seconds to several minutes, so the molding cycle is short and the production efficiency is high.

5) The back pressure required for liquid silica gel in screw metering is very small, generally less than 1.5MPa. For some liquid silica gel materials with very low viscosity, even no back pressure can be set, which is mainly due to the good fluidity of low viscosity silica gel and the low gas content in liquid silica gel in normal operation. On the contrary, the large back pressure will increase the density of the unvulcanized silica gel and destroy the accurate measurement effect of the metering device.

6) Liquid silica gel does not shrink in the process of injection molding, but due to its high thermal expansion coefficient, it usually shrinks by 2% ~ 3% after demoulding and cooling. The exact shrinkage data depends on the material formula. From the point of view of processing, designers should consider some factors affecting shrinkage in advance.
