Specifications
Brand Name :
OUCO
Model Number :
OUCO-400/500/600T
Certification :
CE, ISO9001
Place of Origin :
Wuxi, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per year
Delivery Time :
1 months
Packaging Details :
shipping container
Product Name :
Automatic High Speed 400 TON Plastic Injection Moulding Machine For Bucket ,Fruit box
Plastic Processed: :
PP, PC,PVC
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Type :
Automation
Warranty: :
1 Year
Machinery Test Report: :
Provided
Selling Points :
Competitive Price
Video outgoing-inspection: :
Provided
Machine Style :
Horizontal
Condition :
New
Lead time (days) :
About 50 Days
Description

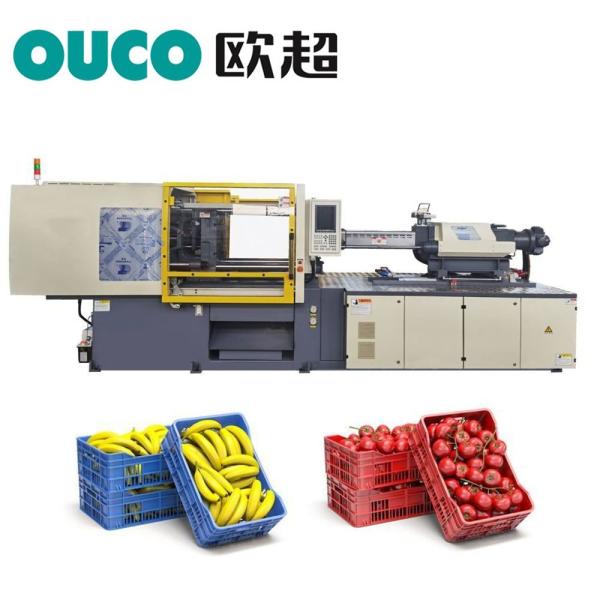

Automatic High Speed 400 TON Plastic Injection Moulding Machine For Bucket, Fruit box

OUCO's special injection molding machine developed for fruit crates and other products. It makes our plastic crate injection molding machines perfectly match with crate molds to ensure higher production capacity and stable product quality.


Suitable for Fruit Basket Production Line

As its efficiency and high repeatability, injection molding machine has many advantages.

1. Faster mass production (efficiency), product a fruit basket with 21S.

2. Enviromental, the plastic can be recycled, so the raw material cost of the plastic basket is low.

3. Flexibility to change material, color, and finishes

4. Cheaper parts: If a part on your machine needs to be replaced, replacement parts are less expensive and easier to find.

Product Paraments

Model 400T 500T 600T
Screw Specifications A B C A B C A B C
Screwdi ameter mm 65 75 80 70 75 85 75 85 90
Screw L/Dratio 22 22 22 22 22 22 22 22 22
Theoretical injection volume cm3 1C75 1431 1628 1481 1700 2184 1788 2297 2575
Shot weight (PS) g 1C11 1345 1530 1377 1581 2031 1645 2113 2369
injection rate(Ps) g/S 426 568 646 G03 693 890 G13 788 884
Injection pressure MPa 242 182 160 209 182 142 204 159 142
Inject on stroke mm 360 385 405
Max. injection speed mm/s 156 166 157
Screw speed r/min 0-200 0-200 0-200
Sys. Pressure MPa 16 16 16
Pump Motor(Min-Max) kW 75 94 101
Displacement ml/r 100+100 125+125 160+125
number of Motors PC 2 2 2
Heater power kW 35 41 47
Number oftemp. control zones 5+1 5+1 5+1
Clamping force kN 4000 5000 6000
Opening stroke mm 900 1000 1150
Tie bar distance W×L mm*mm 760x660 860x760 960x860
Min. mold thickness mm 300 300 350
Max. mold thickness mm 730 800 920
Ejector stroke mm 190 210 210
Ejector force forward kN 80 110 113
Number of ejector bar PC 1+12 1+12 1+12
Oil tank capacity L 680 850 940
Machine dimensions(LxWxH) m*m*m 8.2x1.9x1.9 87x2.0x2.1 9.3x2.1x2.3
Machine weight Ton 15 19 23
