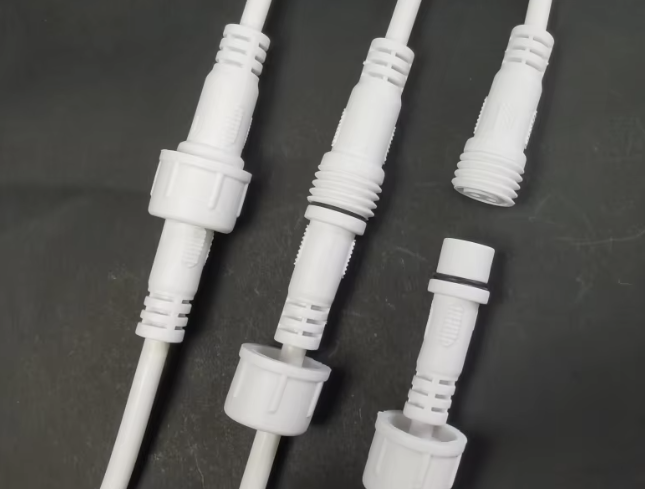

IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
Specifications
Brand Name :
Elite
Model Number :
M15
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
50 pcs
Price :
USD 5-100/PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100000 PCS/Month
Delivery Time :
3-10days
Packaging Details :
box
Type :
Insulated
Rated Voltage :
300v
Insulation MateriaL :
PVC
Operating Temperature :
-20℃ ~ 80℃
Conductor Type :
other
Product Application :
Electrical Equipment
IP Rating :
IP68
Male Terminal Type :
M15 Style
Overmolding Material :
PVC
Description
Product Name

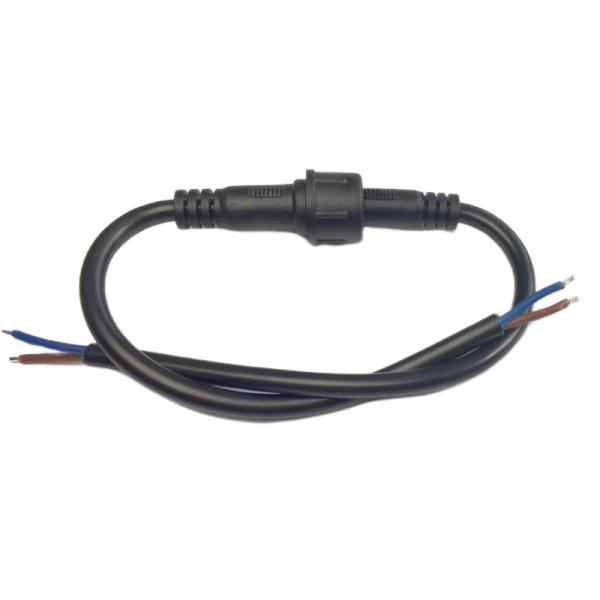

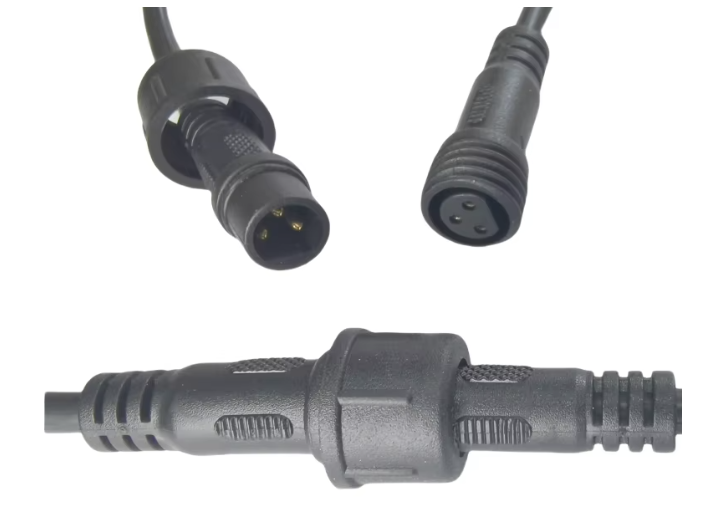

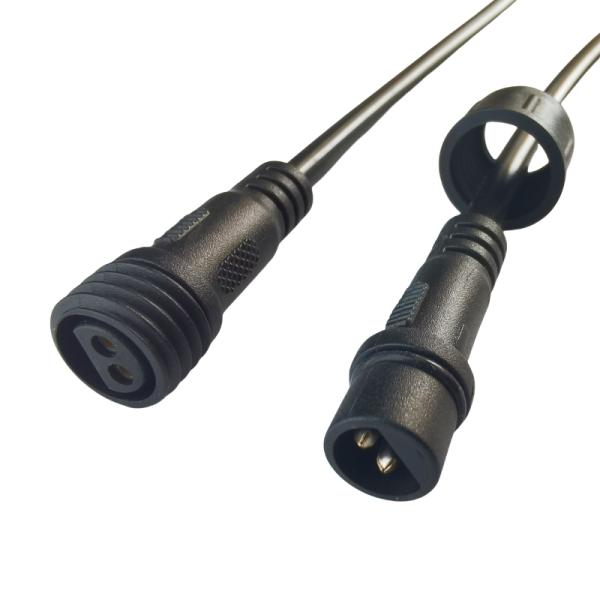

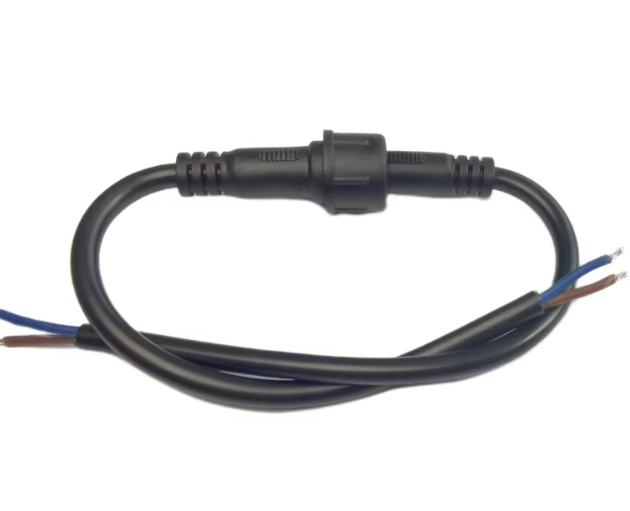

M15 Waterproof Low Voltage Male Female Connector Cable, 2Pin/3Pin, 5 Inch
Material
Copper + PVC
Application & Features
Widely used for LED industry, marine equipment, geothermal equipment, street light, aquaculture, laser device, lighting, furniture, partition screen and so on
DC Spec / Dimension
M15, 2~6 Pin available
Waterproof Grade
IP65 Waterproof
Packaging
Carton Box

IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire


Operating Parameters

Rated Voltage: AC 300V
Rated Current: ≤8A
Mating Cycles: 1500 times
Max. Cable Outer Diameter: ≤5.0mm
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire

Circuit Structure: Parallel
Contact Resistance: 10mΩ
Insulation Resistance: 500MΩ @ DC500V
Withstand Voltage: 1.5KV
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
Performance description

Temperature Rating: -20℃ ~ +85℃
Ingress Protection Rating: IP68
RoHS Compliant MaterialSocket Housing Material: PVC
Pin Material: Nickel-Plated Brass
O-Ring: Rubber
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
