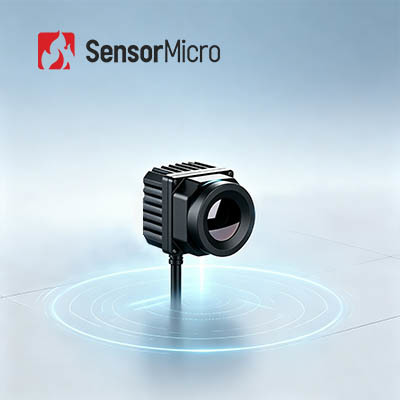

N-Driver 384x288 17μm Uncooled Vehicle Mounted Thermal Camera with 50mK NETD for Night Vision
N-Driver 384x288 17μm Uncooled Vehicle Mounted Thermal Camera with 50mK NETD for Night Vision
Specifications
Brand Name :
SensorMicro
Model Number :
N-driver 384
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C,T/T
Resolution :
384x288/17μm
NETD :
＜50mK
Spectral Range :
8~14μm
Field of View :
37°x28°
Description
N-Driver Vehicle Mounted Thermal Camera Uncooled 384x288 / 17μm
Product Overview

The N-Driver 384 with 384x288/17μm infrared detector is part of the N-Driver series vehicle-mounted infrared modules, designed to enhance driver's visual capability in challenging conditions.

Key Features
  • Clear Thermal Imaging in Night Vision
  • Extended Viewing Distance
  • All-weather Application Capability
  • Easy Integration with Existing Systems
  • High Reliability & Stability
Technical Specifications
Model N-Driver 384
IR Detector Performance
Resolution 384x288
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <50mk
Image Display Performance
Focal Length 9.7mm
Field of View 37°×28°
Video Output Format CVBS
Output Image Frame Rate & Resolution PAL 768x576@25Hz
System Features
Start-up Time ≤8s (Room Temperature)
Heater Automatic heating when window temperature is lower than 2°C±2°C, turns off when higher than 7°C±2°C
Compensation Algorithm Automatic Shutter Compensation
Communication Interface RS232, Baud Rate: 115200bps/CAN Communication, Speed 500kbps
Electrical Features
Supply Voltage DC9V~32V
Overall Power Consumption ≤3.5W@24V (Heating off)
≤9W@24V (Heating on)
Operating Range
Observe Range Person: 1.8m×0.5m ≥150m
Car: 2.3m×2.3m ≥300m
Physical Characteristics
Dimension (mm) 40.0x36.0x58.0 (Without Cable)
Weight 150g±3g (Without Cable)
Environmental Adaptation
Operation Temperature -40°C ~ +85°C
Storage Temperature -45°C ~ +90°C
Package Sealed Case IP67
Industrial Applications

The N-Driver 384 automotive thermal imaging camera is widely used in Advanced Driver Assistance Systems (ADAS) for enhanced safety and visibility.

N-Driver 384x288 17μm Uncooled Vehicle Mounted Thermal Camera with 50mK NETD for Night Vision
Customized Services
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training: Provide hands-on system setup and operational training
  • Joint Innovation: Collaborate to co-develop innovative infrared application solutions
Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?

SensorMicro thermal camera modules are widely used in many industries including:

  • Thermography: Power Maintenance, Machine Vision, Building HVAC, Predictive Maintenance
  • Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security
  • Firefighting & Rescue: Forest Fire Prevention, Search & Rescue
  • UAVs Payload: Equipment Inspection, Enforcement & Rescue
  • Personal Vision: Outdoor Leisure, Animal Observation
  • ADAS: Autonomous Driving, Advanced Driver Assistant System
  • AIoT: Smart Home, Intelligent Hardware, Robots
  • Others: Enhanced Flight Vision, Gas Detection, Agriculture, Scientific Research
