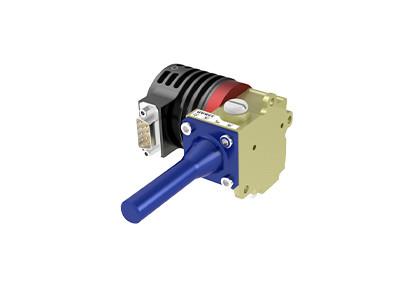

RS058 Stirling Cryo Cooler, Integrated Dewar Cooler Assembly for Cooled Infrared Detectors

RS058 is an integral rotary stirling cryocooler that integrate coolers with an infrared focal plane into an evacuated dewar. With the MTTF more than 10000hrs, cooling power＞550mW (@77K@20℃), cooling time <5mins (250J@77K@20℃), the RS058 cryo cooler will exceed your expectations that it is integrated into various terminal products and operates in a very long time.

As a leading infrared detector and thermal imaging module supplier, SensorMicro has provided the customers with various mature and stable infrared thermal imaging solutions.

- MTTF＞10000hrs

- Cooling Power: (@77K@20℃)＞550mW

- Cooling Time: <5mins (250J@77K@20℃)

- Low Consumption

- Low Noise

- Built-in Drive Electronics

The RS058 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.

High sensitivity and excellent performance

World-leading technology in infrared industry

Various infrared detectors available

Both uncooled and cooled lR detectors in different formats and pixel size

Volume production to ensure fast delivery

Three production lines with annual production capability up to millions of detectors.

1.What is the difference between low light, active IR and thermal imaging?

Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;

Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;

Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.

2. Can you block thermal imaging?

In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.
