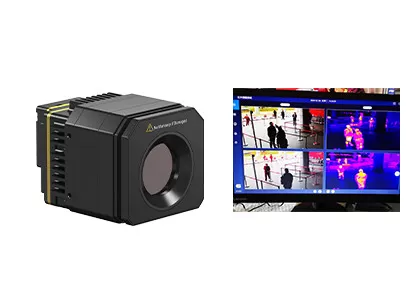

400x300 / 17μm Uncooled VOx LWIR Fever Screening Thermal Camera for Epidemic Prevention

PLUG417S fever screening thermal camera is a hot sale product in the fight against COVID-19. It is specially developed for infrared (IR) fever sensing system in order to measure human body temperature by providing colour images and temperature scales.

It consists of 400×300 / 17μm infrared detector, 7mm infrared optical lens and a specialized SDK for human body temperature measurement.

When the thermal camera is installed in a place with a large number of people, sound alarm can be set to go off when a certain temperature threshold is exceeded. These functions make it easy for an operator to instantly decide whether the subject needs to be referred for medical examination.

- NETD<30mk, High Sensitivity
- Easy to Integrate
- Non-contact Design
- Field of View: 37.2°×28.3°
- Temperature Difference: ±0.5℃
- Temperature Measurement Distance: Optimal 5 Meters

The PLUG417S thermal camera is widely used in human body temperature measurement and elevated body temperature screening.

1. What is infrared thermal imaging?

Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.

2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
