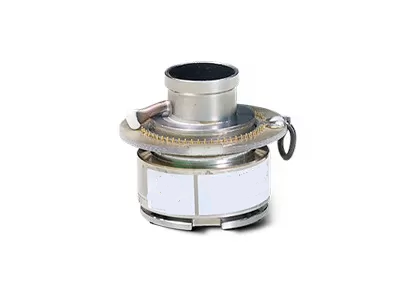

FPA MCT Cooled Infrared Detector Mid Wave 128x128 / 25μm
FPA MCT Cooled Infrared Detector Mid Wave 128x128 / 25μm
FPA MCT Cooled Infrared Detector Mid Wave 128x128 / 25μm
FPA MCT Cooled Infrared Detector Mid Wave 128x128 / 25μm
Specifications
Brand Name :
SensorMicro
Model Number :
C125M MWIR
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C,T/T
Resolution :
128x128
NETD :
＜20mK
Spectral Range :
3.7~4.8μm MW
Pixel Size :
25μm
Description
C125M MWIR Cooled Infrared Detector


FPA MCT Cooled Infrared Detector Mid Wave 128x128 / 25μm


Product Description


The C125M MWIR is a cooled thermal imaging detector. Combined with a maintenance free 128X128 IDDCA and a miniature Joule Thomson cooler.


The C125M MWIR fully satisfies the requirement for thermal imaging and very short cool down time to ensure the efficiency.


Main Features


• Resolution: 128x128
• Pixel Size: 25μm
• High Sensitivity
- Compact Design
- Lightweight

• Throttling cool down, fast startup
• Small size, light weight, compact structure
• No vibration
• No electromagnetic interference


Product Specifications


Model C125M MWIR
Sensitive Material HgCdTe/MCT
Resolution 128×128
Pixel Size 25μm
Spectral Range 3.7μm±0.2μm～4.8μm±0.2μm
Working Mode Snapshot; Integration Mode; Anti-blooming
Charge Capacity 24Me-/8Me-
Dynamic Range ≥80dB
Number of Output Single; Up to 6.5MHz
Cryocooler JF428 JF618
Typical NETD 10mK (F1.5) 10mK (F2)
Effective Pixel Rate ≥99.5% ≥99.5%
Response Non-uniformity ≤5% ≤5%
Cooling Time (20℃) ≤5s (50MPa, Ar, 20℃) ≤20s (50MPa, Ar, 20℃)
Maximum Size (mm) Φ35×48.5 Φ35×42.5
Weight ≤100g ≤90g
Operating Temperature -45℃～+71℃ -45℃～+71℃


Our Service

Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.

Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.

Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.

Remote Technical Support: 24/7 support—quick response and timely resolution for critical issues.

Warranty: Original parts and strict process adherence to restore optimal performance.


FAQs


1. Application of LWIR, MWIR/LWIR Duel-color Cooled Infrared Detector


In infrared thermal imaging technology, long-wave thermal detectors has strong penetration through dusty atmospheres, are not disturbed by sun glint effects and light reflections. Outstanding image quality can be obtained in various complex environments, such as vehicle drives in the dusty atmosphere, ship sails on the water with reflective light and aircraft is flying through the cloud.

The dual-color cooled infrared detector combines the advantages of mid-wave and long-wave detection into one cooled infrared detector assembly, which can simultaneously perform high-performance imaging in the duel wavebands, greatly reducing the false alarm rate. It can be used for the detection of complex backgrounds and the monitoring of high-speed moving targets.
