Fast Integration MCT MWIR Cooled Thermal Module Into s 640x512 15μM

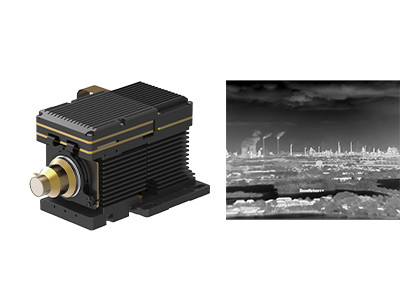

GAVIN615B is a cooled mid wave thermal imaging module developed by SensorMicro. It consists of a 640x512/15µm HgCdTe MWIR IR detector with RS046 cryocooler, hardware electronics and various image processing algorithms are also embedded already to present sharp and clear thermal images.

Configured with RS046 cryocooler, the GAVIN615B is very compact in size, measuring 125x92x67mm in dimension and weighing less than 650g in weight. It’s stable power consumption is as low as 12w. With industrial standard cameralink interface, infrared camera or system integrator can design or integrate their own complete camera easily based on the GAVIN615B thermal imaging module.

- High Sensitivity, NETD≤20mK

- Long Range Detection

- Adjustable Frame Rate

- Easy Integration into the System

The GAVIN615B thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.

Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.

Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.

Remote Technical Support: 24/7 support—quick response and timely resolution for critical issues.

Warranty: Original parts and strict process adherence to restore optimal performance.

1. Application of LWIR, MWIR/LWIR Duel-color Cooled Infrared Detector

In infrared thermal imaging technology, long-wave thermal detectors has strong penetration through dusty atmospheres, are not disturbed by sun glint effects and light reflections. Outstanding image quality can be obtained in various complex environments, such as vehicle drives in the dusty atmosphere, ship sails on the water with reflective light and aircraft is flying through the cloud.

The dual-color cooled infrared detector combines the advantages of mid-wave and long-wave detection into one cooled infrared detector assembly, which can simultaneously perform high-performance imaging in the duel wavebands, greatly reducing the false alarm rate. It can be used for the detection of complex backgrounds and the monitoring of high-speed moving targets.
