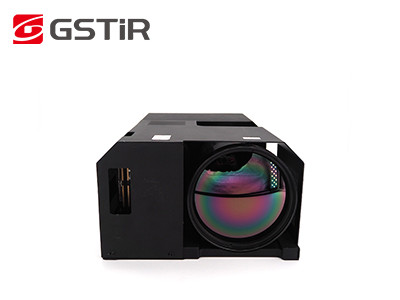

The GAVIN GC1212MA HD MWIR cooled infrared camera core features a self-developed 1280×1024/12μm MWIR cooled detector, providing four times the pixel count of a conventional 640×512 detector within the same active image area. This enables a wider field of view and reveals more image details.

Equipped with multiple image processing algorithms, it delivers high-definition images directly, suitable for all-weather target detection under various visibility conditions and harsh environments. It can detect and recognize risks and threats at long distance while presenting more target details at short distance.

With large array 1280x1024 resolution it can realize wider field of view and provide more image details. The reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission.

• Megapixel Resolution, Exceptional Image Quality - Powered by a 1280×1024/12μm mid-wave cooled infrared detector for sharp, detailed thermal imaging. Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity.
• High Reliability, Superior Sensitivity - Mid-wave cooled thermal imaging technology ensures excellent adaptability and consistency across applications. Outstanding thermal sensitivity with NETD as low as 18mK.
• Easy Integration, Flexible Configuration - Supports CameraLink interface with RAW/YUV image data output. Multiple continuous zoom optical configurations available for different needs.

The GAVIN GC1212MA thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.

• High sensitivity and excellent performance
• World-leading technology in infrared industry
• Various infrared detectors available - Both uncooled and cooled IR detectors in different formats and pixel size
• Volume production to ensure fast delivery - Three production lines with annual production capability up to millions of detectors

The optical gas imaging camera can quickly detect gas without temporarily stopping the production line by identifying the infrared radiation difference between the gas and the background. It visualizes whether gas leakage exists and accurately locates the leakage source.

The development and integration of optical gas imaging solutions based on SensorMicro infrared detectors & thermal modules are mature and widely applied across various industries. These solutions address gas leakage problems in petroleum, natural gas, chemical industry, electric power, and environmental protection monitoring, making significant contributions to environmental protection, energy conservation, safe production, and occupational health.
