LS734 Linear Stirling Cryocooler for MCT Cooled Infrared Detectors with Low Power Consumption High Reliability and Compact Design
LS734 Linear Stirling Cryocooler for MCT Cooled Infrared Detectors with Low Power Consumption High Reliability and Compact Design
LS734 Linear Stirling Cryocooler for MCT Cooled Infrared Detectors with Low Power Consumption High Reliability and Compact Design
LS734 Linear Stirling Cryocooler for MCT Cooled Infrared Detectors with Low Power Consumption High Reliability and Compact Design
Specifications
Brand Name :
SensorMicro
Model Number :
LS734
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T
Type :
Linear Stirling Cryocooler
MTTF :
≥20000hrs
Weight :
≤1.0kg
Steady Power Consumption :
≤10W (430mW@77K@20℃)
Max Power Consumption :
50W
Integration Method :
IDDCA
Description

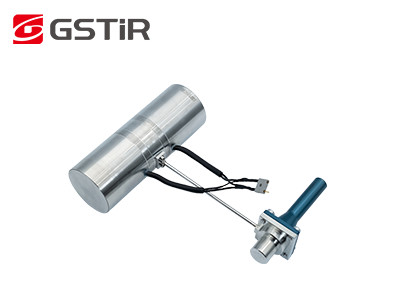

LS734 Linear Stirling Cryocooler for Cooling MCT Cooled Infrared Detector
The LS734 linear Stirling cryocooler incorporates moving magnet linear motor technology and self-lubricating coatings to significantly enhance reliability and operational lifespan. Featuring flexible connecting pipes between compressor and dewar, this system enables versatile layout configurations across various application scenarios.
Main Features
  • Rapid cooling capability
  • Wide operating temperature range
  • Low vibration and noise levels
  • High reliability design
  • Supports 7*24H continuous operation
Applications
Gas leak monitoring, security surveillance, and other scenarios requiring extended operational periods.
Product Specifications
Model LS734
Type Linear Stirling Cryocooler
MTTF ≥20000hrs
Maximum Size (mm) Compressor Φ46*122
Expander Φ40*88
Weight ≤1.0kg
Cooling Power (@77K@20℃)≥1300mW
Operating Temperature -45℃~+71℃
Storage Temperature -55℃~+85℃
Environmental Specification GJB150A-2009
Input Voltage 24DC
Max Power Consumption 50W
Steady Power Consumption ≤10W (430mW@77K@20℃)
Cooling Time ≤4min (450J@77K@20℃)
Cold Finger Dimension Φ8mm
Electronics Built-in
Integration Method IDDCA
About Us
LS734 Linear Stirling Cryocooler for MCT Cooled Infrared Detectors with Low Power Consumption High Reliability and Compact Design
Frequently Asked Questions
1. What is infrared thermal imaging?
Infrared thermal imaging utilizes infrared radiation and thermal energy to gather information about objects, enabling image formation and temperature measurement even in low-visibility conditions.
2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging systems employ passive non-contact detection technology. The system focuses infrared radiation from the scene onto a focal plane array infrared detector through specialized infrared optics. The thermal detector converts varying radiation intensities into corresponding electrical signals, which are then amplified and processed to create visible infrared images.
