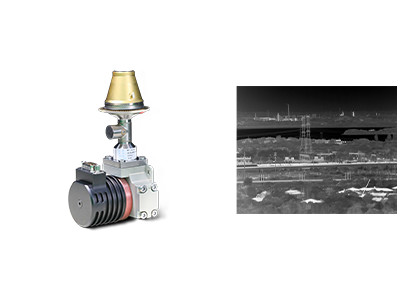

1280x1024 / 12μm Cooled FPA Detector with Integrated Dewar Cooler Assembly

The C1212M MWIR MCT FPA detector has high resolution, high performance and high reliability. It offers four times as many pixels in the same active image area as conventional 640x512 products. Its reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission. C1212M is an ideal choice for applications that require superior long range performance and image details recognition.

Outstanding Performance
• 1280×1024 high definition for wider FOV and longer distance
• 12μm pixel size for better spatial resolution

Sharp & Clear Image
• High sensitivity, typical NETD as low as 18mK
• Good uniformity, effective pixel rate＞99.5%

Design for Specific Applications
• F number can be customized
• Guarantee continuous supply

The C1212M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

During the sales process, SensorMicro offers comprehensive technical support for product integration and debugging. Our engineers collaborate closely with customers' R&D and production teams, providing detailed product technical documentation, integration guidelines, and on-site technical training. We ensure smooth integration of our infrared detectors, thermal modules, and infrared cores into customers' end products, shortening the R&D cycle and improving production efficiency. For large-scale or complex projects, we also assign dedicated project managers to coordinate resources, track project progress, and address any technical issues in a timely manner.

1.What is infrared detector / thermal imaging sensor?

Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device to react to infrared radiation and thermal energy and convert it into electrical signal and then output visible thermal images.

2.What is WLP?

WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package, ceramic package, they are the 3 main package formats of uncooled infrared detectors.

3. What's the advantage of WLP?

WLP IR detectors are specially designed to meet the miniaturization and low cost requirement in the application of infrared technology to consumer electronics market. We are now offering a variety of WLP infrared module solutions to boost more new applications of emerging markets.
