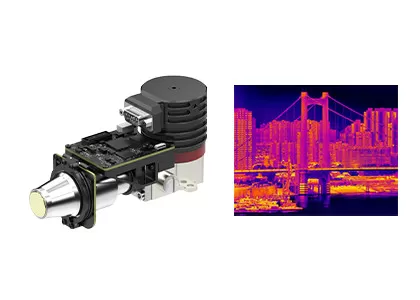

Cooled Thermal Module With 640x512 / 15μM MCT MWIR Infrared Detector

GAVIN615B Compact Low Power Consumption 640x512 / 15μm MCT MWIR Cooled Camera Module

GAVIN615B is a cooled mid wave thermal imaging module developed by SensorMicro. It consists of a 640x512 / 15µm HgCdTe MWIR IR detector with RS046 cryocooler, hardware electronics and various image processing algorithms are also embedded already to present sharp and clear thermal images.

Configured with RS046 cryocooler, the GAVIN615B is very compact in size, measuring 125x92x67mm in dimension and weighing less than 650g in weight. It’s stable power consumption is as low as 12w. With industrial standard cameralink interface, infrared camera or system integrator can design or integrate their own complete camera easily based on the GAVIN615B thermal imaging module.

- High Sensitivity, NETD≤20mK

- Long Range Detection

- Adjustable Frame Rate

- Easy Integration into the System

The GAVIN615B thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.

Rich Product Variety

Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.

Outstanding Performance

Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.

Easy Integration

Multiple interface options make integration straightforward and enable rapid development across multiple application fields.

1. What is thermal sensiivity?

Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.

2. What are the applications of thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in security & monitoring, UAV payloads, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, AIoT etc.
