Tube Tungsten Lighting Balloon – 20kW Ø3.2m × 8m for Linear Soft Fill in Film & Television
Tube Tungsten Lighting Balloon – 20kW Ø3.2m × 8m for Linear Soft Fill in Film & Television
Tube Tungsten Lighting Balloon – 20kW Ø3.2m × 8m for Linear Soft Fill in Film & Television
Tube Tungsten Lighting Balloon – 20kW Ø3.2m × 8m for Linear Soft Fill in Film & Television
Specifications
Light souce :
Tube-shaped
Color temperature :
3200K
Light Source :
4 × 5000W Tungsten
Volume :
65 m³ （customizable）
CRI :
Over 98
Control ways :
DMX control (standard); CRMX (Lumen Radio)-(optional)
Brand Name :
HAFE
Model Number :
Artemis series
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
negotiable
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
3000units/year
Delivery Time :
25 working days
Packaging Details :
Standard export carton
Description

Tube Tungsten Lighting Balloon – 20kW Ø3.2m × 8m for Linear Soft Fill in Film & Television

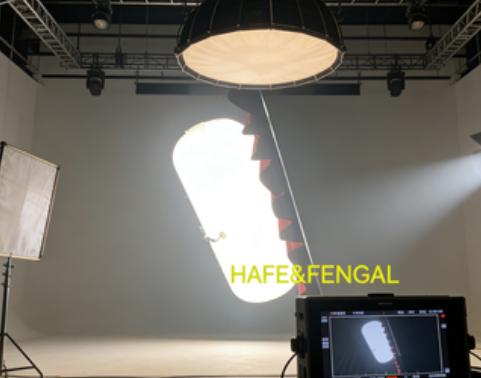

Designed for film, television, and high-end commercial productions, the Artemis Tube Tungsten balloon provides 540,000 lumens of warm, flicker-free, and ultra-soft illumination through an elongated cylindrical diffuser. Its 8-meter linear form factor is ideal for lighting narrow or long environments such as corridors, aircraft cabins, train interiors, and period sets where authentic incandescent ambiance and superior color rendering are required. The system uses four 5000W tungsten lamps (3200K) mounted internally with reflective baffles to ensure even output across the entire length. Built with heat-resistant, anti-yellowing nylon fabric and internal thermal shielding, it supports extended operation under full load. The balloon is ground-mounted, requires no helium, and packs down into two transport bags for easy movement between locations.

Key Features

Feature
Description
Linear Soft Illumination​
8-meter continuous source ideal for corridors, cabins, and narrow sets.
High CRI & True Tungsten Color​
>98 CRI ensures perfect skin tones and material rendering.
Flicker-Free Operation​
Continuous AC waveform compatible with any shutter angle or frame rate.
Thermal Management​
Dual-layer fabric with heat-reflective inner barrier extends service life.
Rapid Deployment​
Inflates with air; no helium required; includes integrated rigging points.
Compact Transport​
Deflates into two bags for easy logistics.

Technical Specifications

Parameter
Specification
Model​
Artemis Tube Tungsten 20kW
Light Source​
4 × 5000W Tungsten
Total Power​
20,000 W
Luminous Flux​
540,000 lm
Color Temperature​
3200K (fixed tungsten)
CRI (Ra)​
>98
Shape
Tube
Diameter​
3.2 m
Length​
8.0 m
Volume​
65 m³
Lamp Base​
R7s / G9.5 (custom industrial socket)
Power Input​
230V, 3×63A (3-phase recommended)
Inflation Medium​
Air only (not suitable for helium due to weight)
Fabric Material​
Heat-resistant, anti-yellowing nylon with internal thermal shielding
Deployment​
Ground mount on pipe grids or truss; includes lifting straps and anchor points
Pack Size​
~1.5 m³ (two transport bags)
Applications​
Feature films, TV series, aviation commercials, period dramas, interior long-axis lighting

Product Advantages

  • Color Accuracy & Continuity​ – Full-spectrum tungsten output, no flicker, perfect match with practicals.
  • Deployment & Practicality​ – Ground-mounted, no helium, includes straps and anchor points.
  • Reliability & Support​ – ISO 9001 certified, 48-hour burn-in test, optional dimmer packs available.
