Professional TH-Series Stage Rigging Hardware: Side Arms & Truss Rings for Lighting & AV Mounting
Professional TH-Series Stage Rigging Hardware: Side Arms & Truss Rings for Lighting & AV Mounting
Professional TH-Series Stage Rigging Hardware: Side Arms & Truss Rings for Lighting & AV Mounting
Professional TH-Series Stage Rigging Hardware: Side Arms & Truss Rings for Lighting & AV Mounting
Specifications
Brand Name :
HAFE
Model Number :
TH Series
Certification :
/
Place of Origin :
China
MOQ :
1UNIT
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000units/year
Delivery Time :
7-10days
Packaging Details :
transport case or carton
Color :
Silver
Connection Standard :
Compatible with 30mm/25mm/23mm Square Truss Systems
Surface Protection :
Electrostatic Powder Coating (Side Arms) / Plastic Coating (Rings)
Mounting Configuration :
Multiple Pre-Drilled Holes at 50mm Centers
Package Configuration :
Individual Protective Packaging with Installation Manual
Installation Tool Requirements :
Standard 13mm/17mm Wrench-Compatible Hardware
Description

Professional TH-Series Stage Rigging Hardware: Side Arms & Truss Rings for Lighting & AV Mounting

The TH-Series represents a professional-grade collection of stage and studio rigging hardware designed for the demanding requirements of live events, theatrical productions, film studios, and permanent installations. Engineered with precision and durability in mind, each component serves a specific function in creating safe, reliable, and flexible mounting solutions for lighting, audio, video, and special effects equipment.

Model Product Type Specifications Key Features Primary Use Key Parameters
TH-001 Multiple Fixture Mounting Arm 5/8" socket ×1, 5/8" stud ×3, Length: 50cm, 25×25mm Compact multi-mount design, studio-grade construction Mounting multiple small fixtures, accessories in tight spaces Length: 50cm, Threads: 1 socket + 3 studs, Profile: 25×25mm
TH-002 Multiple Fixture Mounting Arm 5/8" socket ×3, 5/8" stud ×1, Length: 50cm, 25×25mm Triple socket configuration, versatile mounting options Connecting multiple accessories to single mounting point Length: 50cm, Threads: 3 sockets + 1 stud, Profile: 25×25mm
TH-003 Multiple Fixture Mounting Arm 5/8" socket ×1, 5/8" stud ×4, Length: 60cm, 25×25mm Extended length with multiple stud connections Supporting multiple fixtures in linear arrangements Length: 60cm, Threads: 1 socket + 4 studs, Profile: 25×25mm

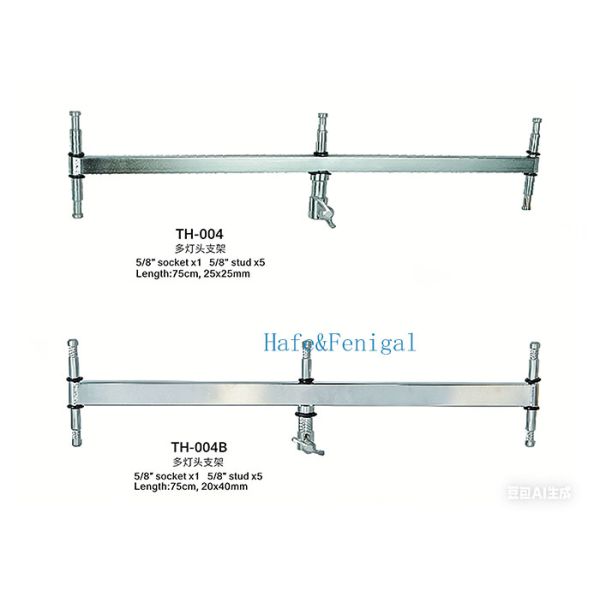

TH-004 Multiple Light Fixture Arm 5/8" socket ×1, 5/8" stud ×5, Length: 75cm, 25×25mm High-density stud configuration, extended reach Large-scale fixture arrays, studio grid setups Length: 75cm, Threads: 1 socket + 5 studs, Profile: 25×25mm
TH-004B Multiple Light Fixture Arm 5/8" socket ×1, 5/8" stud ×5, Length: 75cm, 20×40mm Slim profile design, same functionality as TH-004 Space-constrained installations, streamlined setups Length: 75cm, Threads: 1 socket + 5 studs, Profile: 20×40mm
TH-005 Multiple Light Fixture Arm 5/8" socket ×5, 5/8" stud ×1, Length: 75cm, 25×25mm Maximum socket configuration, flexible accessory mounting Multi-accessory setups, adapter-heavy configurations Length: 75cm, Threads: 5 sockets + 1 stud, Profile: 25×25mm

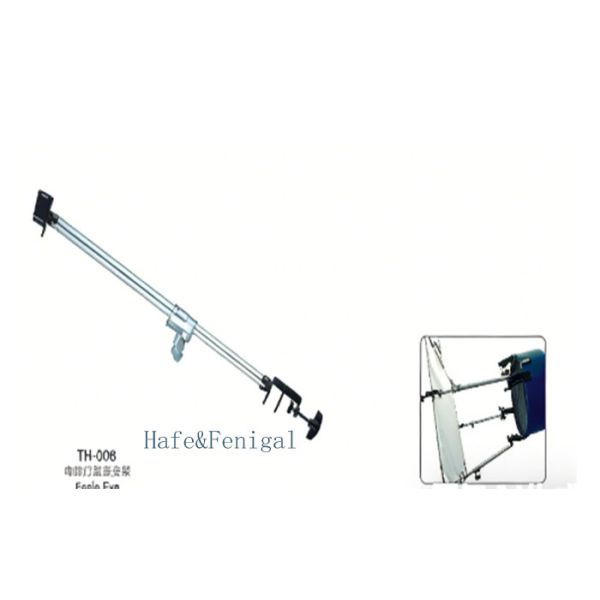

TH-006 Flagboard Support Length: 1370mm, Diameter: 85mm, Weight: 3.98kg Large diameter support tube, heavy-duty construction Supporting large flags, silks, diffusion panels Length: 1370mm, Diameter: 85mm, Weight: 3.98kg
TH-007 Flagboard Support Length: 1150mm, Diameter: 80mm, Weight: 2.48kg Medium-length flag support, standard diameter General-purpose flag and scrim support Length: 1150mm, Diameter: 80mm, Weight: 2.48kg
TH-008 Movie Light Flag Support Length: 800mm, Diameter: 54mm, Weight: 0.88kg Lightweight compact design, small diameter tube Small flag support, mobile shooting setups Length: 800mm, Diameter: 54mm, Weight: 0.88kg
TH-013 Multiple Light Fixture Arm Length: 50.5cm, 30×30mm Square profile design, no thread specification provided General fixture mounting (thread details required) Length: 50.5cm, Profile: 30×30mm,
TH-014 Multiple Light Fixture Arm Length: 50.5–73.0cm, 30×30 / 25×25mm Adjustable length, dual profile compatibility Versatile mounting with adjustable reach Min Length: 50.5cm, Max Length: 73.0cm, Profiles: 30×30/25×25mm
TH-015 Multiple Light Fixture Arm Length: 53.0cm, 20×40mm Slim rectangular profile, compact design Low-profile installations, space-efficient setups Length: 53.0cm, Profile: 20×40mm,

System Integration and Compatibility:

The TH-Series is designed as an integrated ecosystem where components work seamlessly together:

  • All side arms feature standardized hole patterns that align with common truss system dimensions

  • Truss rings include multiple connection points compatible with side arms and other rigging hardware

  • The series is compatible with most professional clamping systems including super clamps, mafer clamps, and half-couplers

  • Color-coded installation guides and labeled components reduce setup time and minimize installation errors

Safety and Quality Assurance:

Every TH-Series product undergoes rigorous testing protocols:

  • Load Testing: Each batch is subjected to static and dynamic load testing exceeding rated capacities

  • Material Analysis: Steel composition is verified to meet international standards for rigging hardware

  • Welding Integrity: All welds are inspected using non-destructive testing methods

  • Environmental Testing: Products are tested in simulated environmental conditions including temperature extremes and humidity exposure

  • Documentation: Each product ships with detailed load charts, installation guidelines, and safety warnings in multiple languages

Professional TH-Series Stage Rigging Hardware: Side Arms & Truss Rings for Lighting & AV MountingProfessional TH-Series Stage Rigging Hardware: Side Arms & Truss Rings for Lighting & AV Mounting

Shiping:
Normally, the goods will be shipping by Sea, by air or by DHL according to customer's request
1). Strong and professional package Hicase for safety transportation.
2). Clear label Item show what is product in the cartons.

About us

HAFE International Limited is a specialized manufacturer and supplier for balloon lights (event lighting, film lighting and construction lighting), Inflatables and Electricals, Equipment & Tools in China over 10 years experience. Wuxi Fenigal Science and Technology Co. Ltd. is the holding company of HAFE International Limited.
